ASCO

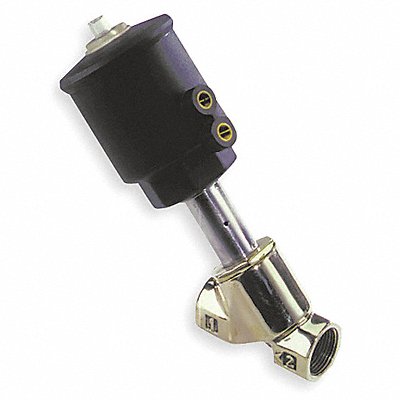

Angle Body Valve 1-1/4 CV 32.0

$417.37
  • Angle Body Valve 1-1/4 CV 32.0

ASCO

Angle Body Valve 1-1/4 CV 32.0

$417.37
Mfr Model #: 8290A016
WEI Part #: 4ELX9
Contract  51V : Catalog - 332510C
Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 1-1/4 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 90 psi Max Operating Pressure Differential Steam 90 psi Indoor Outdoor Coefficient of Volume 32.0 Body Material - Valves Bronze Seal Material - Valves PTFE Orifice Dia 1-1/4 In.
  • Gallery
  • Description
Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 1-1/4 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 90 psi Max Operating Pressure Differential Steam 90 psi Indoor Outdoor Coefficient of Volume 32.0 Body Material - Valves Bronze Seal Material - Valves PTFE Orifice Dia 1-1/4 In.
