ASCO

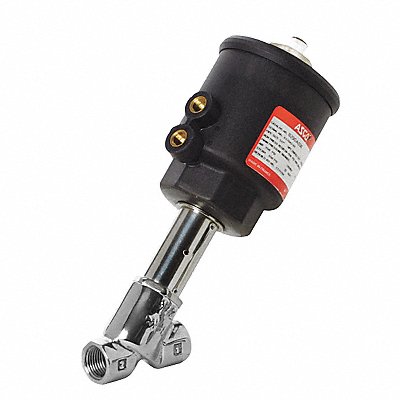

Angle Body Valve 1/2 CV 5.7

Sold out
  • Angle Body Valve 1/2 CV 5.7

ASCO

Angle Body Valve 1/2 CV 5.7

Sold out
Mfr Model #: 8290B045
WEI Part #: 4ELY8
Contract  51V : Catalog - 332510C

Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 1/2 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 240 psi Max Operating Pressure Differential Steam 150 psi Indoor Outdoor Coefficient of Volume 5.7 Body Material - Valves 316L Stainless Steel Seal Material - Valves PTFE Orifice Dia 1/2 In.

  • Gallery
  • Description

Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 1/2 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 240 psi Max Operating Pressure Differential Steam 150 psi Indoor Outdoor Coefficient of Volume 5.7 Body Material - Valves 316L Stainless Steel Seal Material - Valves PTFE Orifice Dia 1/2 In.
