ASCO

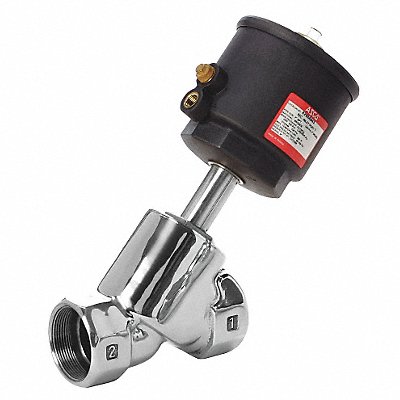

Angle Body Valve 2 CV 68.0

$1,185.26
  • Angle Body Valve 2 CV 68.0

ASCO

Angle Body Valve 2 CV 68.0

$1,185.26
Mfr Model #: 8290A068
WEI Part #: 4ELY4
Contract  51V : Catalog - 332510C
Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 2 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 90 psi Max Operating Pressure Differential Steam 90 psi Indoor Outdoor Coefficient of Volume 68.0 Body Material - Valves 316L Stainless Steel Seal Material - Valves PTFE Orifice Dia 2 In.
  • Gallery
  • Description
Angle Body Piston Valve Angle Body Piston Valve Valve Ways and Positions 2-Way/2-Position Normally Closed Media - Valves Air Inert Gases Light Slurries Oil Water Pipe Size - Valves 2 In. Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Water 90 psi Max Operating Pressure Differential Steam 90 psi Indoor Outdoor Coefficient of Volume 68.0 Body Material - Valves 316L Stainless Steel Seal Material - Valves PTFE Orifice Dia 2 In.
