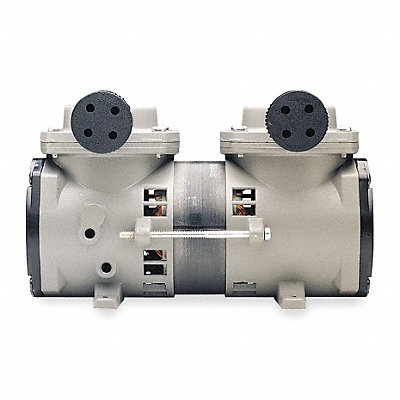

THOMAS

Compressr/Vacuum Pump 1/20 HP 60 Hz 115V

Sold out
  • Compressr/Vacuum Pump 1/20 HP 60 Hz 115V

THOMAS

Compressr/Vacuum Pump 1/20 HP 60 Hz 115V

Sold out
Mfr Model #: 2107CA20
WEI Part #: 5Z347
Contract  51V : Catalog - 332510C

Compressor/Vacuum Pump Compressor Type Diaphragm 1/20 HP Voltage 115 60 Hz 1.6 Full Load Amps Inlet Size 1/8 in NPT Outlet Size 1/8 in NPT Max Vacuum 23.2 in Hg Max PSI Cont./Int. 5/5 Free Air CFM @ 0 PSI 1.65 Free Air CFM @ 0 Vacuum 1.65 Free Air CFM @ 20 Vacuum 0.17 Overall Length 8 In. Overall Width 4-1/4 In. Overall Height 4-3/4 In.

  • Gallery
  • Description
Compressr/Vacuum Pump 1/20 HP 60 Hz 115V

Compressor/Vacuum Pump Compressor Type Diaphragm 1/20 HP Voltage 115 60 Hz 1.6 Full Load Amps Inlet Size 1/8 in NPT Outlet Size 1/8 in NPT Max Vacuum 23.2 in Hg Max PSI Cont./Int. 5/5 Free Air CFM @ 0 PSI 1.65 Free Air CFM @ 0 Vacuum 1.65 Free Air CFM @ 20 Vacuum 0.17 Overall Length 8 In. Overall Width 4-1/4 In. Overall Height 4-3/4 In.
