EATON

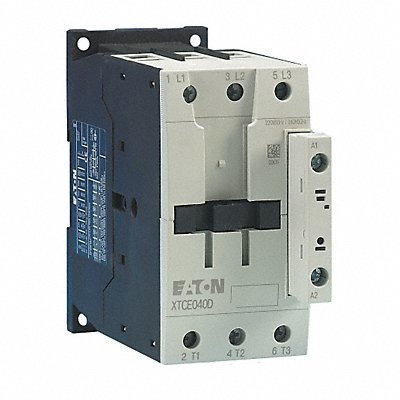

H2509 IEC Magnetic Contactor 120VAC 50A 3P

Sold out
  • H2509 IEC Magnetic Contactor 120VAC 50A 3P

EATON

H2509 IEC Magnetic Contactor 120VAC 50A 3P

Sold out
Mfr Model #:
Contract  51V : Catalog - 332510C

H2509 IEC Magnetic Contactor Full Load Amps-Inductive 50 Full Load Amps-Resistive 80 Number of Poles 3 Coil Volts 120VAC Reversing No HP @ 1 Phase - 120V 3 HP @ 1 Phase - 240V 10 HP @ 3 Phase - 208V 15 HP @ 3 Phase - 240V 20 HP @ 3 Phase - 480V 40 HP @ 3 Phase - 575V 50 Enclosure NEMA Rating No Enclosure Hz 50/60 Height 2.17 In. Width 2.17 In. Depth 5.2 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame D

  • Gallery
  • Description
H2509 IEC Magnetic Contactor 120VAC 50A 3P

H2509 IEC Magnetic Contactor Full Load Amps-Inductive 50 Full Load Amps-Resistive 80 Number of Poles 3 Coil Volts 120VAC Reversing No HP @ 1 Phase - 120V 3 HP @ 1 Phase - 240V 10 HP @ 3 Phase - 208V 15 HP @ 3 Phase - 240V 20 HP @ 3 Phase - 480V 40 HP @ 3 Phase - 575V 50 Enclosure NEMA Rating No Enclosure Hz 50/60 Height 2.17 In. Width 2.17 In. Depth 5.2 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame D
