EATON

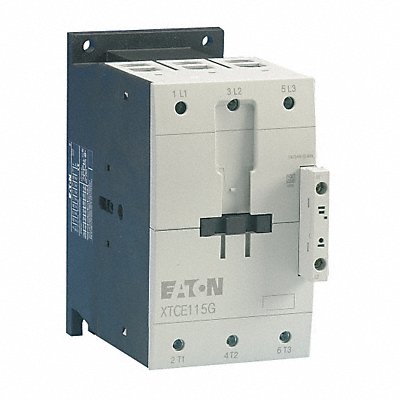

H2516 IEC Magnetic Contactor 24VAC 170A 3P

Sold out
  • H2516 IEC Magnetic Contactor 24VAC 170A 3P

EATON

H2516 IEC Magnetic Contactor 24VAC 170A 3P

Sold out
Mfr Model #:
Contract  51V : Catalog - 332510C

H2516 IEC Magnetic Contactor Full Load Amps-Inductive 170 Full Load Amps-Resistive 275 Number of Poles 3 Coil Volts 24VAC Reversing No HP @ 1 Phase - 120V 10 HP @ 1 Phase - 240V 30 HP @ 3 Phase - 208V 40 HP @ 3 Phase - 240V 60 HP @ 3 Phase - 480V 125 HP @ 3 Phase - 575V 125 Enclosure NEMA Rating No Enclosure Hz 50/60 Height 3.54 In. Width 3.54 In. Depth 6.26 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame G

  • Gallery
  • Description
H2516 IEC Magnetic Contactor 24VAC 170A 3P

H2516 IEC Magnetic Contactor Full Load Amps-Inductive 170 Full Load Amps-Resistive 275 Number of Poles 3 Coil Volts 24VAC Reversing No HP @ 1 Phase - 120V 10 HP @ 1 Phase - 240V 30 HP @ 3 Phase - 208V 40 HP @ 3 Phase - 240V 60 HP @ 3 Phase - 480V 125 HP @ 3 Phase - 575V 125 Enclosure NEMA Rating No Enclosure Hz 50/60 Height 3.54 In. Width 3.54 In. Depth 6.26 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame G
