EATON

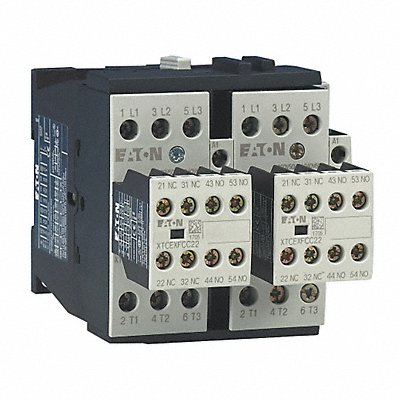

H2535 IEC Magnetc Cntactr 24VDC 32A 1NC/2NO

Sold out
  • H2535 IEC Magnetc Cntactr 24VDC 32A 1NC/2NO

EATON

H2535 IEC Magnetc Cntactr 24VDC 32A 1NC/2NO

Sold out
Mfr Model #:
Contract  51V : Catalog - 332510C

H2535 IEC Magnetic Contactor Full Load Amps-Inductive 32 Full Load Amps-Resistive 45 Number of Poles 3 Coil Volts 24VDC Reversing Yes HP @ 1 Phase - 120V 3 HP @ 1 Phase - 240V 5 HP @ 3 Phase - 208V 10 HP @ 3 Phase - 240V 10 HP @ 3 Phase - 480V 20 HP @ 3 Phase - 575V 25 Aux. Contact Configuration 2NO/1NC Enclosure NEMA Rating No Enclosure Height 3.54 In. Width 3.54 In. Depth 5.79 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame C

  • Gallery
  • Description
H2535 IEC Magnetc Cntactr 24VDC 32A 1NC/2NO

H2535 IEC Magnetic Contactor Full Load Amps-Inductive 32 Full Load Amps-Resistive 45 Number of Poles 3 Coil Volts 24VDC Reversing Yes HP @ 1 Phase - 120V 3 HP @ 1 Phase - 240V 5 HP @ 3 Phase - 208V 10 HP @ 3 Phase - 240V 10 HP @ 3 Phase - 480V 20 HP @ 3 Phase - 575V 25 Aux. Contact Configuration 2NO/1NC Enclosure NEMA Rating No Enclosure Height 3.54 In. Width 3.54 In. Depth 5.79 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame C
