EATON

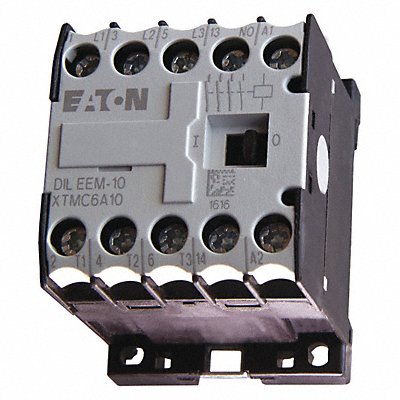

H2547 IEC Mini Magnetic Contactr 120VAC 6A 1NO

Sold out
  • H2547 IEC Mini Magnetic Contactr 120VAC 6A 1NO

EATON

H2547 IEC Mini Magnetic Contactr 120VAC 6A 1NO

Sold out
Mfr Model #:
Contract  51V : Catalog - 332510C

H2547 Miniature IEC Magnetic Contactor Full Load Amps-Inductive 6 Full Load Amps-Resistive 20 Number of Poles 3 Coil Volts 120VAC Reversing No HP @ 1 Phase - 120V 1/4 HP @ 1 Phase - 240V 3/4 HP @ 3 Phase - 208V 1-1/2 HP @ 3 Phase - 240V 2 HP @ 3 Phase - 480V 3 HP @ 3 Phase - 575V 3 Aux. Contact Configuration 1NO Enclosure NEMA Rating No Enclosure Hz 50/60 Height 1.77 In. Width 1.77 In. Depth 2.05 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame A

  • Gallery
  • Description
H2547 IEC Mini Magnetic Contactr 120VAC 6A 1NO

H2547 Miniature IEC Magnetic Contactor Full Load Amps-Inductive 6 Full Load Amps-Resistive 20 Number of Poles 3 Coil Volts 120VAC Reversing No HP @ 1 Phase - 120V 1/4 HP @ 1 Phase - 240V 3/4 HP @ 3 Phase - 208V 1-1/2 HP @ 3 Phase - 240V 2 HP @ 3 Phase - 480V 3 HP @ 3 Phase - 575V 3 Aux. Contact Configuration 1NO Enclosure NEMA Rating No Enclosure Hz 50/60 Height 1.77 In. Width 1.77 In. Depth 2.05 In. Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame A
