SQUARE D

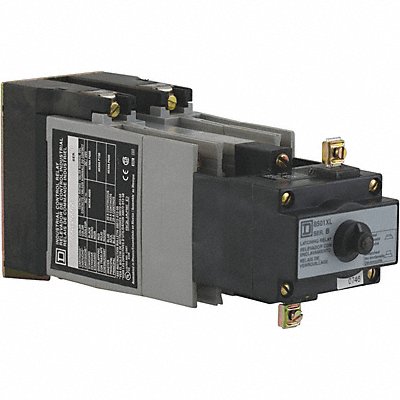

H2728 Latching NEMA Contrl Rlay 6NO 120VAC 10A

Sold out
  • H2728 Latching NEMA Contrl Rlay 6NO 120VAC 10A

SQUARE D

H2728 Latching NEMA Contrl Rlay 6NO 120VAC 10A

Sold out
Mfr Model #: 8501XO60XLV02
WEI Part #: 2VLG4
Contract  51V : Catalog - 332510C

H2728 Latching NEMA Control Relay Coil Volts 120VAC AC Contact Rating - Relay 10A @ 120/240/480/600V DC Contact Rating - Relay 5A @ 125/250V Number of Pins - Relay 14 Contact Form - Relay (6) SPST-NO Mounting - Relay Surface Power Consumption - Relay 23.0VA Body Height - Relay 3.50 In. Body Width - Relay 2.23 In. Body Depth - Relay 5.16 In. Overall Height - Relay 3.50 In.

  • Gallery
  • Description
H2728 Latching NEMA Contrl Rlay 6NO 120VAC 10A

H2728 Latching NEMA Control Relay Coil Volts 120VAC AC Contact Rating - Relay 10A @ 120/240/480/600V DC Contact Rating - Relay 5A @ 125/250V Number of Pins - Relay 14 Contact Form - Relay (6) SPST-NO Mounting - Relay Surface Power Consumption - Relay 23.0VA Body Height - Relay 3.50 In. Body Width - Relay 2.23 In. Body Depth - Relay 5.16 In. Overall Height - Relay 3.50 In.
