SQUARE D

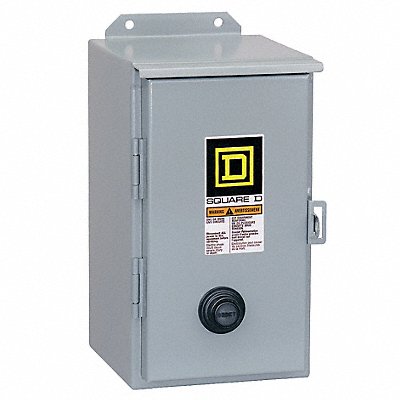

H5161 Magnetic Motor Starter NEMA 120V 3P 90A

Sold out
  • H5161 Magnetic Motor Starter NEMA 120V 3P 90A

SQUARE D

H5161 Magnetic Motor Starter NEMA 120V 3P 90A

Sold out
Mfr Model #: 8536SEA1V02S
WEI Part #: 1H532
Contract  51V : Catalog - 332510C

H5161 Magnetic Motor Starter NEMA Size 3 Amps AC 90 Coil Volts 120VAC Enclosure NEMA Rating 3R 12 HP @ 3 Phase - 240V 30 HP @ 3 Phase - 480V 50 Action Nonreversing Number of Poles 3 HP @ 3 Phase - 208V 25 HP @ 3 Phase - 575V 50 Height 31.5 In. Width 18.16 In. Depth 9.56 In. Standards UL Listed/CSA Certified

  • Gallery
  • Description
H5161 Magnetic Motor Starter NEMA 120V 3P 90A

H5161 Magnetic Motor Starter NEMA Size 3 Amps AC 90 Coil Volts 120VAC Enclosure NEMA Rating 3R 12 HP @ 3 Phase - 240V 30 HP @ 3 Phase - 480V 50 Action Nonreversing Number of Poles 3 HP @ 3 Phase - 208V 25 HP @ 3 Phase - 575V 50 Height 31.5 In. Width 18.16 In. Depth 9.56 In. Standards UL Listed/CSA Certified
