DAYTON

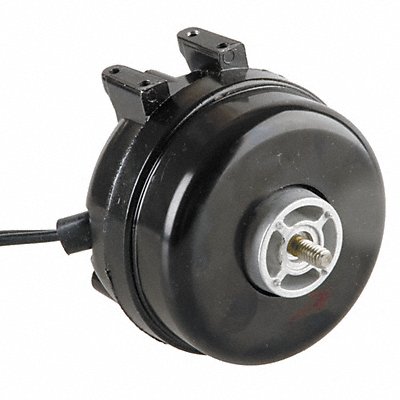

Unit Bearing Motor 1/83 HP 1550 rpm 230V

Sold out
  • Unit Bearing Motor 1/83 HP 1550 rpm 230V

DAYTON

Unit Bearing Motor 1/83 HP 1550 rpm 230V

Sold out
Mfr Model #: 4YFH1
WEI Part #: 4YFH1
Contract  51V : Catalog - 332510C

Unit Bearing Motor Shaded Pole Totally Enclosed Air-Over 1/83 HP 1550 Nameplate RPM Frame Non-Standard Voltage 230 Hz 60/50 1 Phase Full Load Amps 0.33 Output Watts 9 Rear/Foot Motor Mounting Type Motor Thermal Protection Auto Ins. Class A Motor Service Factor 1.00 Sleeve Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C Motor Shaft Rotation CCWLE Overall Length 4-5/16 In. Motor Shaft Design Threaded

  • Gallery
  • Description
Unit Bearing Motor 1/83 HP 1550 rpm 230V

Unit Bearing Motor Shaded Pole Totally Enclosed Air-Over 1/83 HP 1550 Nameplate RPM Frame Non-Standard Voltage 230 Hz 60/50 1 Phase Full Load Amps 0.33 Output Watts 9 Rear/Foot Motor Mounting Type Motor Thermal Protection Auto Ins. Class A Motor Service Factor 1.00 Sleeve Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C Motor Shaft Rotation CCWLE Overall Length 4-5/16 In. Motor Shaft Design Threaded
