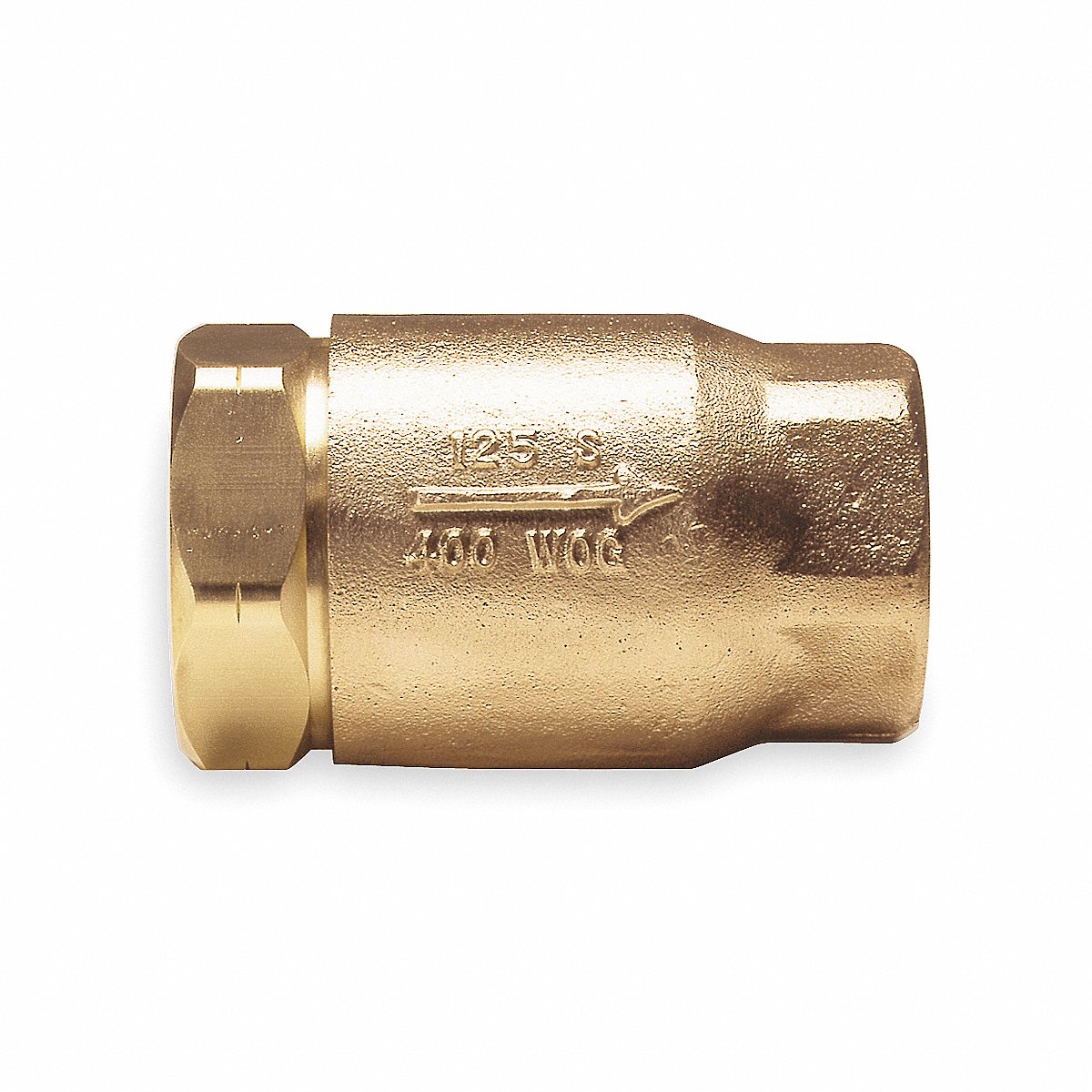

Apollo Ball Cone Spring Check Valve (6110501)

Body Material: Bronze

Flow: 6 gpm

Mounting Orientation: Vertical, Horizontal

Valve Body Style: Inline

For Media: Steam

Maximum Pressure - Operating: 400 psi

3-A Standard Compliance: Not Rated

Seat Material: RPTFE

Media Temp. Range: 33 Degrees F to 406 Degrees F

Check Mechanism Material: RPTFE

Seal Material: EPDM

Connection Type: FNPT x FNPT

Silent Check: Standard

Maximum Pressure - Steam: 125 psi

Coefficient of Volume (Cv): 6

Nominal Valve Size: 1 in

Check Mechanism: Ball

Cracking Pressure: 0.5 psi

Standards: CRN, Buy American Act (BAA), Build America Buy America (BABA) Act
