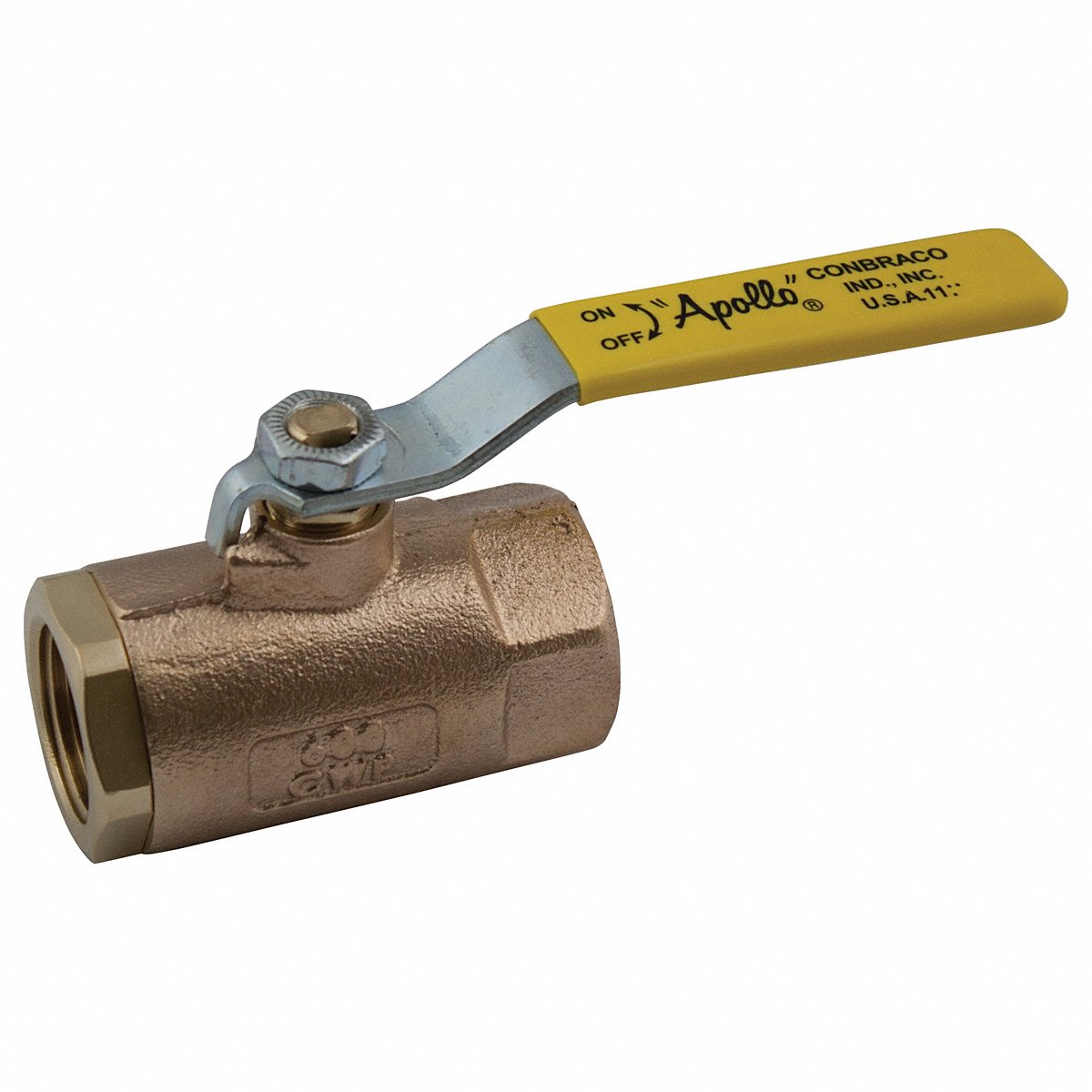

Apollo Manual 2-Way Ball Valve NPT Bronze (7010410)

Valve Ways: 2-Way

Coefficient of Volume (Cv): 0.01

Color - Valve Handle: Yellow

For Media: Steam

Seal Material: PTFE

Body Material: Bronze

Vacuum Service Rating: 29 in Hg

3-A Standard Compliance: Not Rated

Standards: ARRA Compliant, CRN, Buy American Act (BAA), Build America Buy America Act (BABA), ASTM B584-C84400

Stem Material: Brass

Valve Construction: Two-Piece

Ball Material: Chrome-Plated Bronze

Valve Body Style: Straight

Maximum Pressure - Operating: 600 psi

Handle: Lever

Media Temp. Range: -20 Degrees F to 500 Degrees F

Seat Material: PTFE

Overall Length: 3 in

Ball Port Style: Standard Port

Nominal Valve Size: 3/4 in

Connection Type: FNPT x FNPT

Maximum Pressure - Combustible Gas: Not Rated

Handle Material: Stainless Steel

Maximum Pressure - Steam: 150 psi
