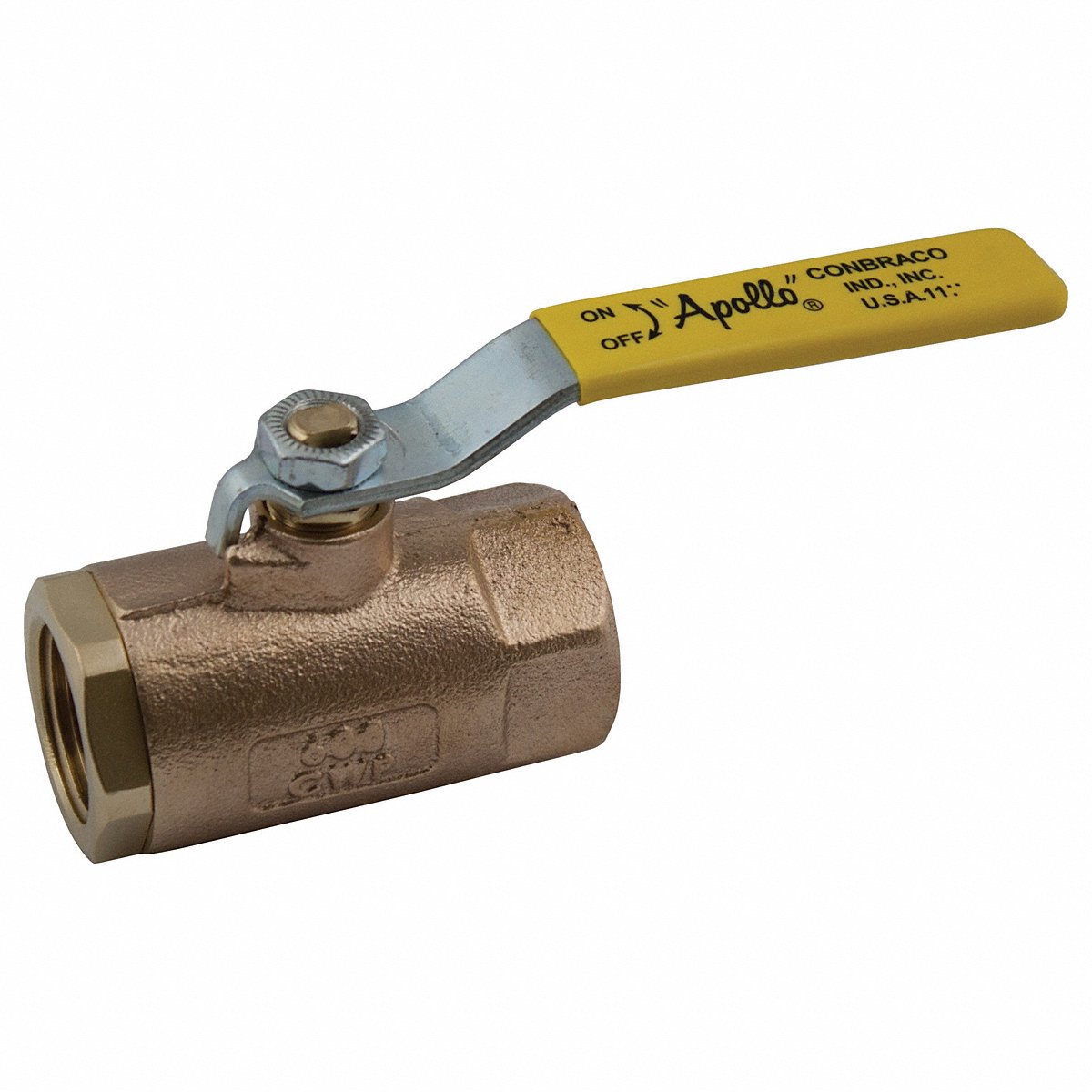

Apollo Manual 2-Way Ball Valve, Npt, Bronze (7010501)

Handle: Lever

Stem Material: Brass

Valve Body Style: Straight

Valve Construction: Two-Piece

Ball Port Style: Standard Port

Maximum Pressure - Steam: 150 psi

Valve Ways: 2-Way

Body Material: Bronze

Standards: ARRA Compliant, CRN, Buy American Act (BAA), Build America Buy America Act (BABA), ASTM B584-C84400

Ball Material: Chrome-Plated Bronze

Connection Type: FNPT x FNPT

Coefficient of Volume (Cv): 0.01

Maximum Pressure - Combustible Gas: Not Rated

Nominal Valve Size: 1 in

Seal Material: PTFE

Seat Material: PTFE

Color - Valve Handle: Yellow

Maximum Pressure - Operating: 600 psi

Overall Length: 3.37 in

Vacuum Service Rating: 29 in Hg

For Media: Steam

Handle Material: Zinc-Plated Steel, PVC

3-A Standard Compliance: Not Rated

Media Temp. Range: -20 Degrees F to 500 Degrees F
