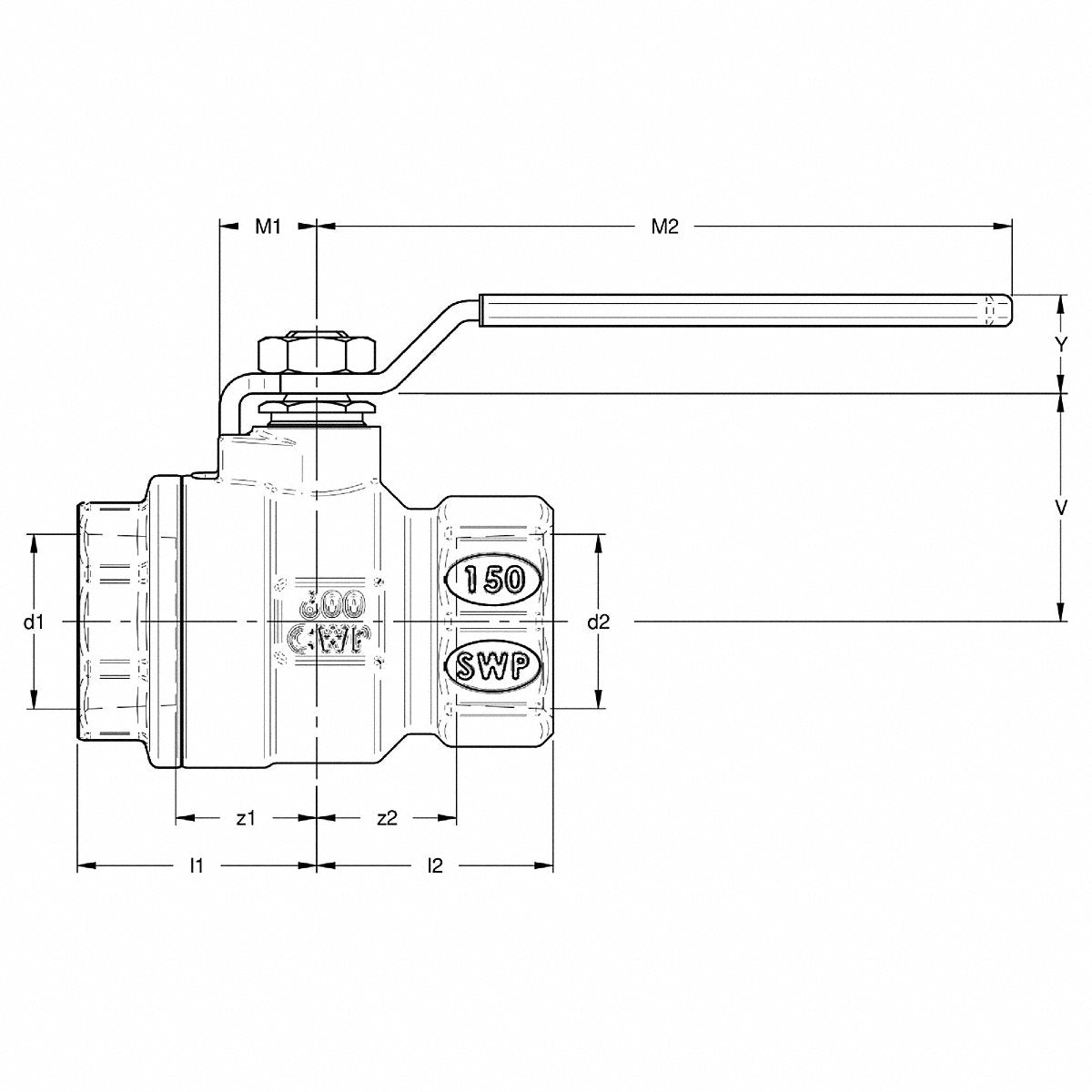

Apollo Manual 2-Way Ball Valve, Npt, Bronze (77C10801A)

Connection Type: FNPT x FNPT

Overall Length: 4.85 in

Valve Ways: 2-Way

Coefficient of Volume (Cv): 389

Ball Material: Chrome-Plated Brass

Seal Material: PTFE

Maximum Pressure - Steam: 150 psi

Handle Material: Zinc-Plated Steel, PVC

Vacuum Service Rating: 29 in Hg

Vented Ball Valve: Vented

Color - Valve Handle: Yellow

Handle: Lever

Nominal Valve Size: 2 in

Valve Body Style: Straight

Seat Material: PTFE

Ball Port Style: Full Port

Maximum Pressure - Combustible Gas: Not Rated

Maximum Pressure - Operating: 600 psi

Valve Construction: Two-Piece

Stem Material: PTFE

Media Temp. Range: -20 Degrees F to 450 Degrees F

3-A Standard Compliance: Not Rated

Standards: CRN, Buy American Act (BAA), Build America Buy America Act (BABA), ASTM B584-C84400

Body Material: Bronze

For Media: Steam
