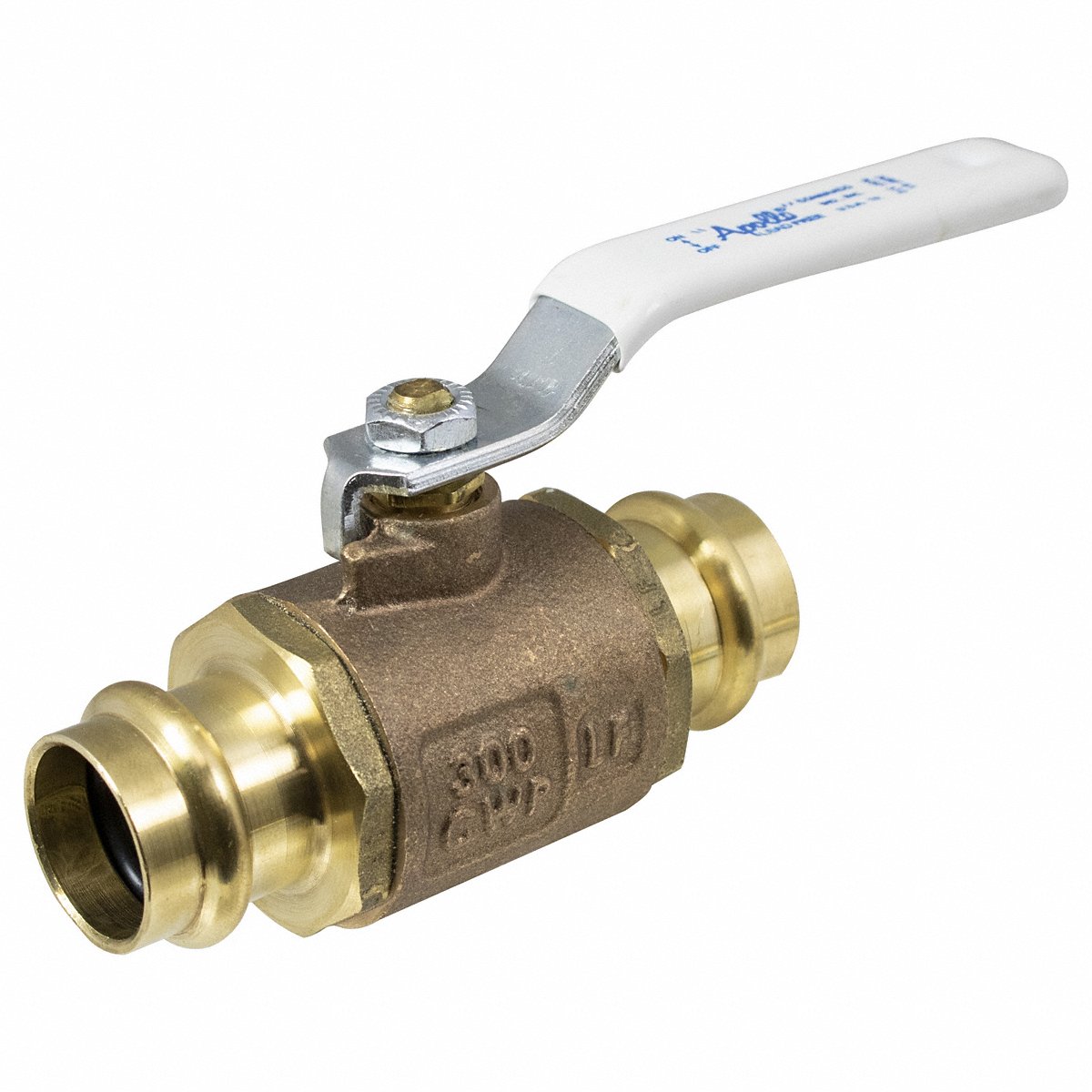

Apollo Manual 2-Way Ball Valve Press Bronze (77WLF10301A)

Seal Material: EPDM

Valve Body Style: Straight

Coefficient of Volume (Cv): 0.01

Nominal Valve Size: 1/2 in

Standards: ARRA Compliant, ASTM B584, Buy American Act (BAA), Build America Buy America Act (BABA), IAPMO/ANSI Z1157, NSF/ANSI/CAN 372, MSS SP-110

Valve Construction: Two-Piece

Ball Port Style: Full Port

Handle: Lever

3-A Standard Compliance: Not Rated

Maximum Pressure - Combustible Gas: Not Rated

Maximum Pressure - Operating: 300 psi

Color - Valve Handle: White

Connection Type: Press x Press

Stem Material: Brass

Handle Material: Plated Steel, PVC

Seat Material: PTFE

For Media: Water

Ball Material: Chrome-Plated Brass

Valve Ways: 2-Way

Vented Ball Valve: Vented

Media Temp. Range: 0 Degrees F to 250 Degrees F

Body Material: Brass, Bronze

Overall Length: 3.01 in

Maximum Pressure - Steam: 15 psi

NSF Certifications for Food and Drinking Water: NSF 61
