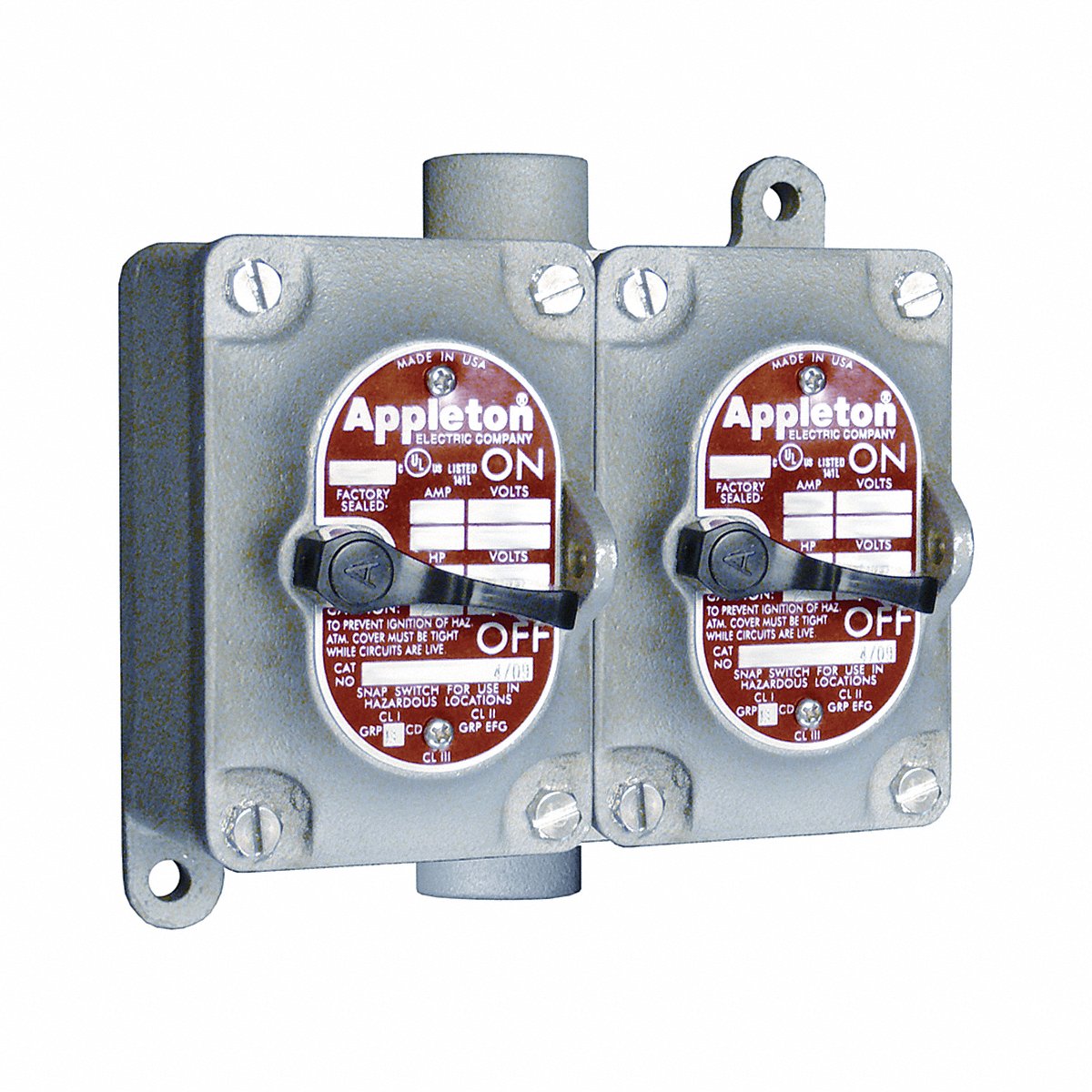

Appleton Electric Tumbler Switch 2 Gang Feed-Thru 3-Way (EDSC275-F3W)

Horsepower @ 120V AC: 1 hp

NEMA Enclosure Rating: 3, 9, 7

Hub Size: 3/4 in

Horsepower @ 240V AC: 2 hp

Hub Style: Feed-Thru

Number of Poles: 3

Hazardous Location Specification: Class III, Div 1 and 2, Class II, Div 1 and 2, Group E, F, G, Class I, Div 1 and 2, Group B, C, D

Compatible with Series: EDS

Manufacturer Part Number: EDSC275-F3W

Number of Gangs: 2

Voltage Rating - Maximum: 277 V AC

Actuator Style: Front Lever

Switch Type: 3-Way
