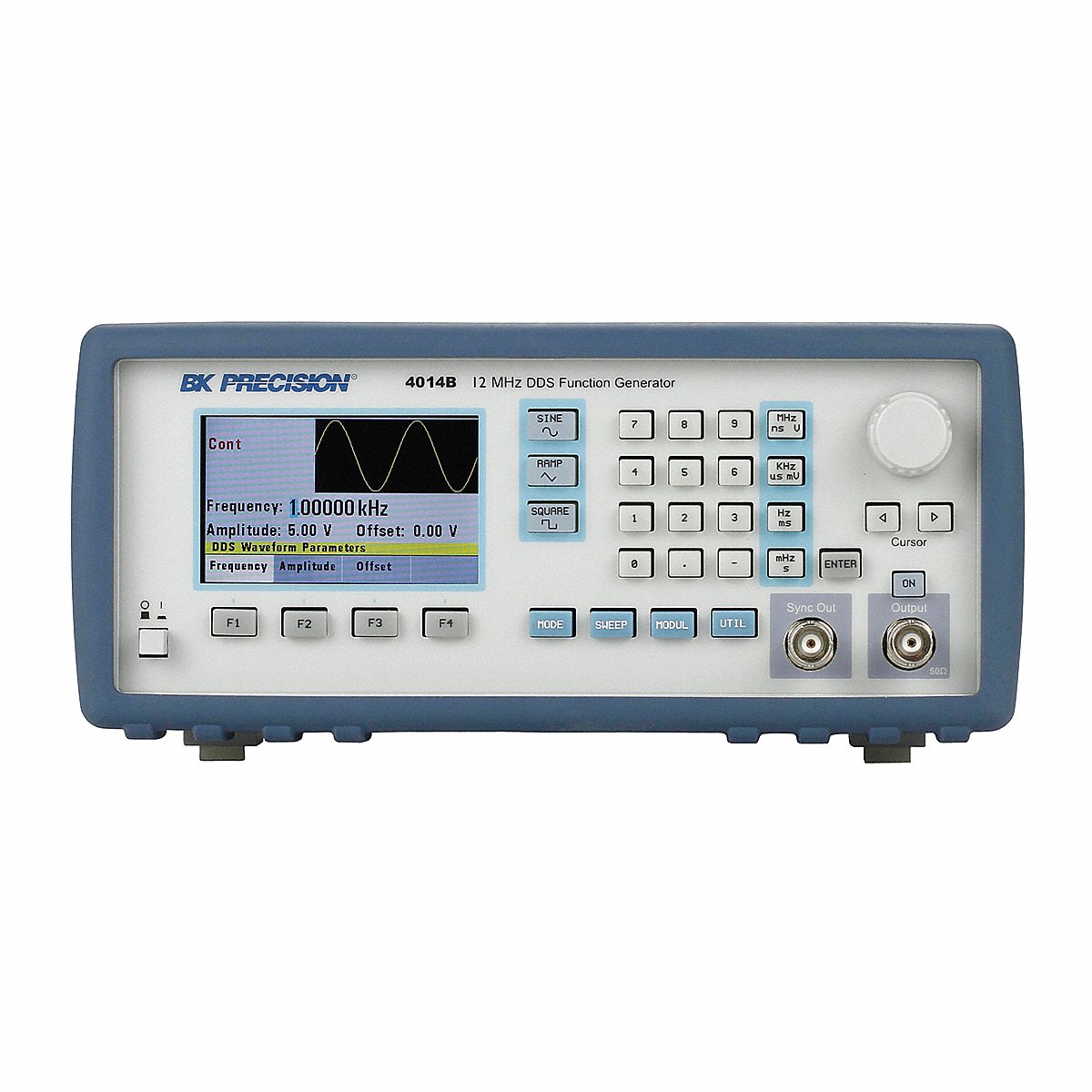

B&K Precision Function Generator 12 MHz AM/FM (4014B)

Manufacturer Part Number: 4014B

Sine Wave Harmonic Distortion: 1 MHz - 5 MHz, Less Than -50 dBc, 5 MHz - 12 MHz, Less Than -45 dBc, 0 - 1 MHz, Less Than -60 dBc

Wave Frequency Accuracy: 0.01% +/-0.006 Hz

Square Wave Rise/Fall Time: Less Than 20 nsec (10%-90%) at Full Amplitude Into 50 ohm

Square Wave Frequency - Maximum: 12 MHz

Single Pulse Wave Frequency - Maximum: 12 MHz

Sweep Time - Maximum: 100 sec

Sine Wave Frequency - Minimum: 0.01 Hz

Waveforms Generated: Sine, Square, Triangle

Number of Display Digits: 6

Output Amplitude: 10 mVpp to 10 Vpp (into 50 ohm), 20 mVpp to 20 Vpp (Open Circuit)

Square Wave Frequency - Minimum: 0.01 Hz

Calibration Certificate: Included

Single Pulse Wave Frequency - Minimum: 0 MHz

Triangle Wave Frequency - Maximum: 1 MHz

Number of Channels: 1

Output Attenuation: +/-1 dB to 12 MHz, +/-0.5 dB to 1 MHz

Sine Wave Frequency - Maximum: 12 MHz

Triangle Wave Frequency - Minimum: 0.1 Hz

Sweep Time - Minimum: 10 msec

Digital Display Screen Type: LCD

Generator Type: Sweep Function
