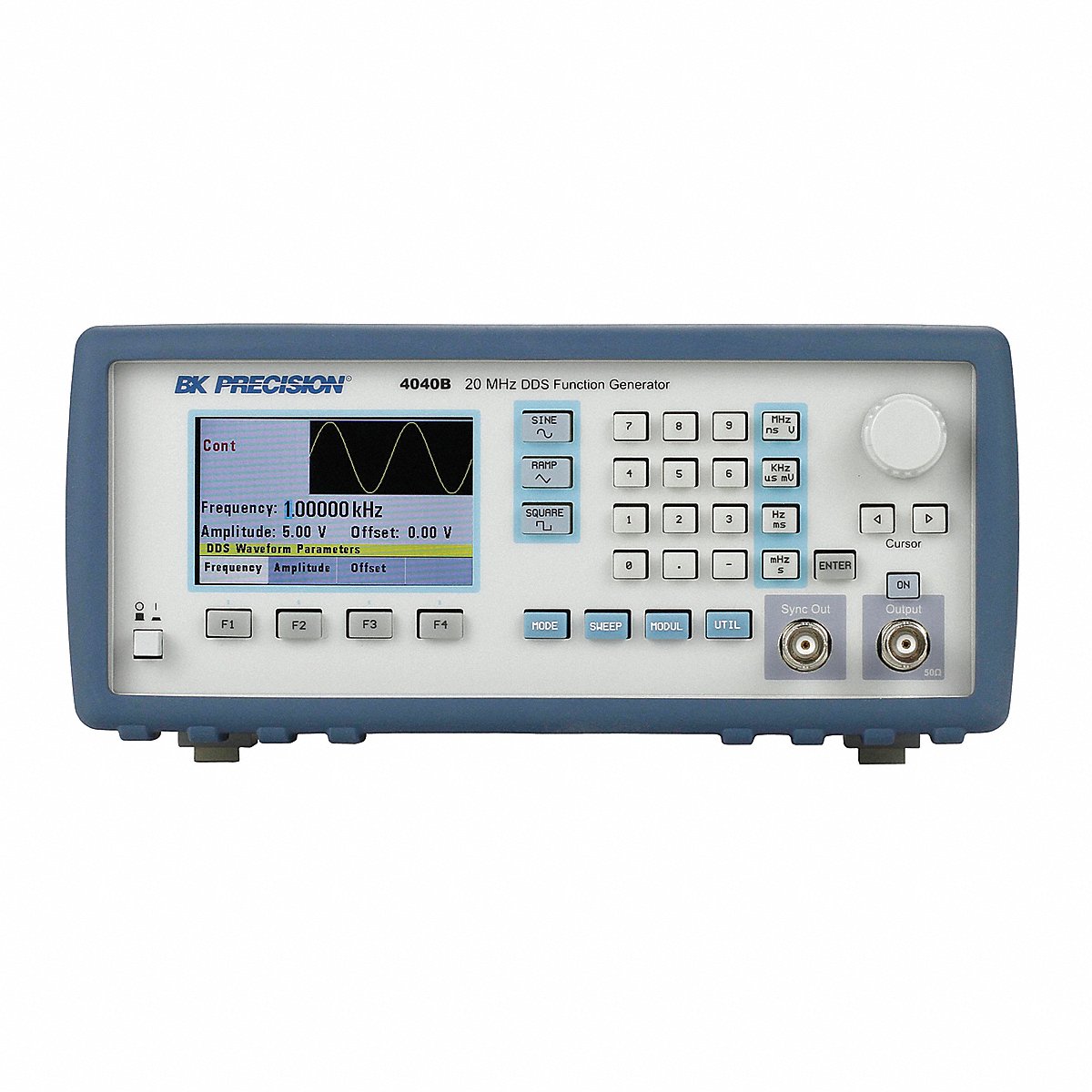

B&K Precision Function Generator 20 MHz (4040B)

Square Wave Frequency - Minimum: 0.01 Hz

Digital Display Screen Type: LCD

Generator Type: Sweep Function

Sine Wave Frequency - Minimum: 0.01 Hz

Sine Wave Harmonic Distortion: 1 MHz - 5 MHz, Less Than -50 dBc, 12 MHz - 20 MHz, Less Than -50 dBc, 5 MHz - 12 MHz, Less Than -45 dBc, 0 - 1 MHz, Less Than -60 dBc

Manufacturer Part Number: 4040B

Triangle Wave Frequency - Minimum: 0.1 Hz

Sine Wave Frequency - Maximum: 20 MHz

Waveforms Generated: Sine, Square, Triangle

Number of Display Digits: 6

Single Pulse Wave Frequency - Maximum: 20 MHz

Single Pulse Wave Frequency - Minimum: 0 MHz

Calibration Certificate: Included

Triangle Wave Frequency - Maximum: 2 MHz

Wave Frequency Accuracy: 0.01% +/-0.006 Hz

Square Wave Frequency - Maximum: 20 MHz

Sweep Time - Minimum: 10 msec

Number of Channels: 1

Square Wave Rise/Fall Time: Less Than 20 nsec (10%-90%) at Full Amplitude Into 50 ohm

Sweep Time - Maximum: 100 sec

Output Amplitude: 10 mVpp to 10 Vpp (into 50 ohm), 20 mVpp to 20 Vpp (Open Circuit)

Output Attenuation: +/-1 dB to 20 MHz, +/-0.5 dB to 1 MHz
