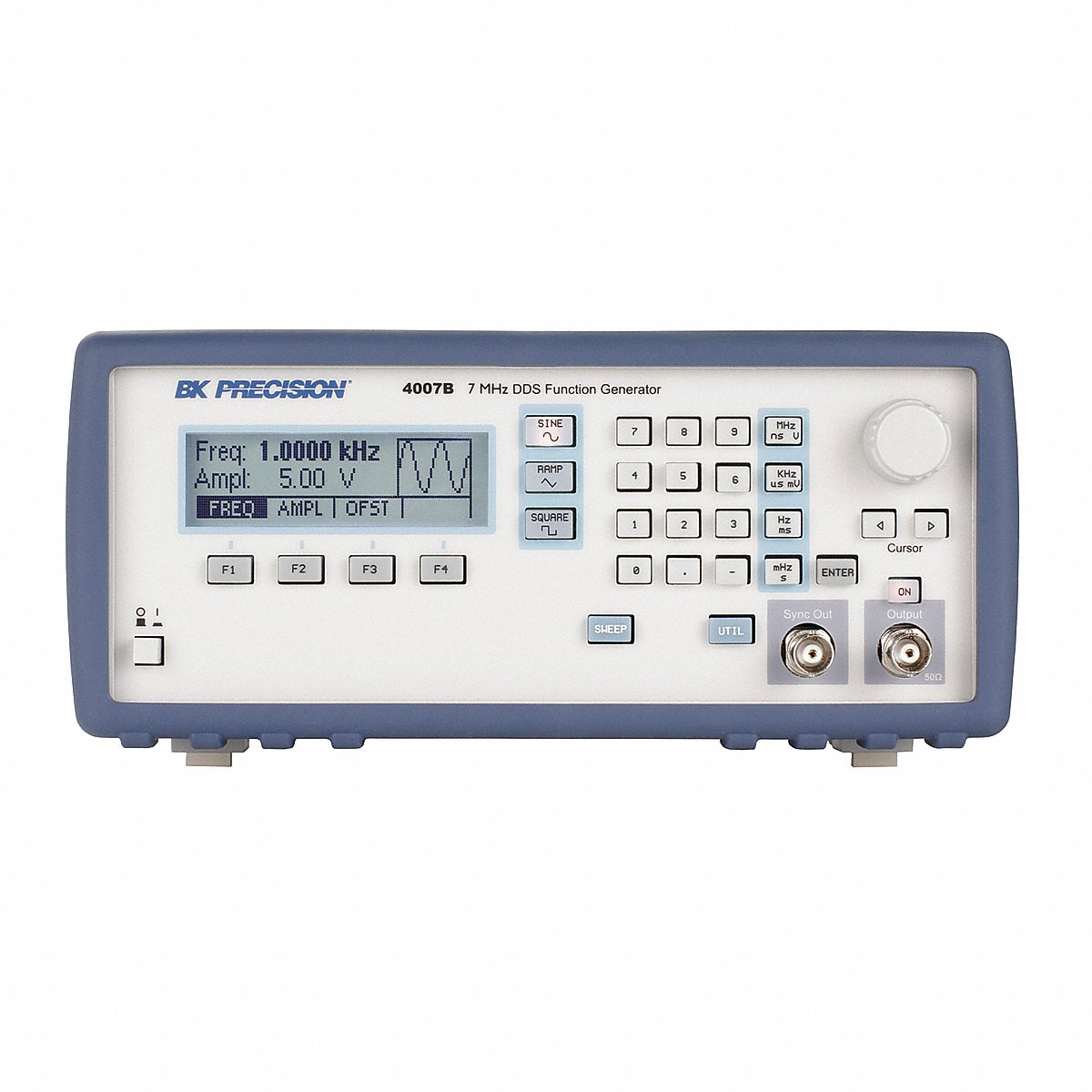

B&K Precision Function Generator 7 MHz (4007B)

Single Pulse Wave Frequency - Minimum: 0.1 MHz

Sweep Time - Minimum: 20 msec

Triangle Wave Frequency - Minimum: 0.1 Hz

Number of Channels: 1

Sweep Time - Maximum: 100 sec

Generator Type: Sweep Function

Number of Display Digits: 5

Calibration Certificate: Not Included

Digital Display Screen Type: LCD

Square Wave Frequency - Maximum: 7 MHz

Waveforms Generated: Sine, Square, Triangle

Output Attenuation: +/-1 dB to 7 MHz

Sine Wave Frequency - Maximum: 7 MHz

Single Pulse Wave Frequency - Maximum: 7 MHz

Sine Wave Harmonic Distortion: 100 kHz - 1 MHz, Less Than -45 dBc, DC - 100 kHz, -55 dBc, 1 MHz - 7 MHz, Less Than -30 dBc

Square Wave Rise/Fall Time: Less Than 20 nsec (10%-90%) at Full Amplitude Into 50 ohm

Triangle Wave Frequency - Maximum: 1 MHz

Wave Frequency Accuracy: 0.01% +/-0.186 Hz

Square Wave Frequency - Minimum: 0.1 Hz

Manufacturer Part Number: 4007B

Output Amplitude: 10 mVpp to 10 Vpp (into 50 ohm), 20 mVpp to 20 Vpp (Open Circuit)

Sine Wave Frequency - Minimum: 0.1 Hz
