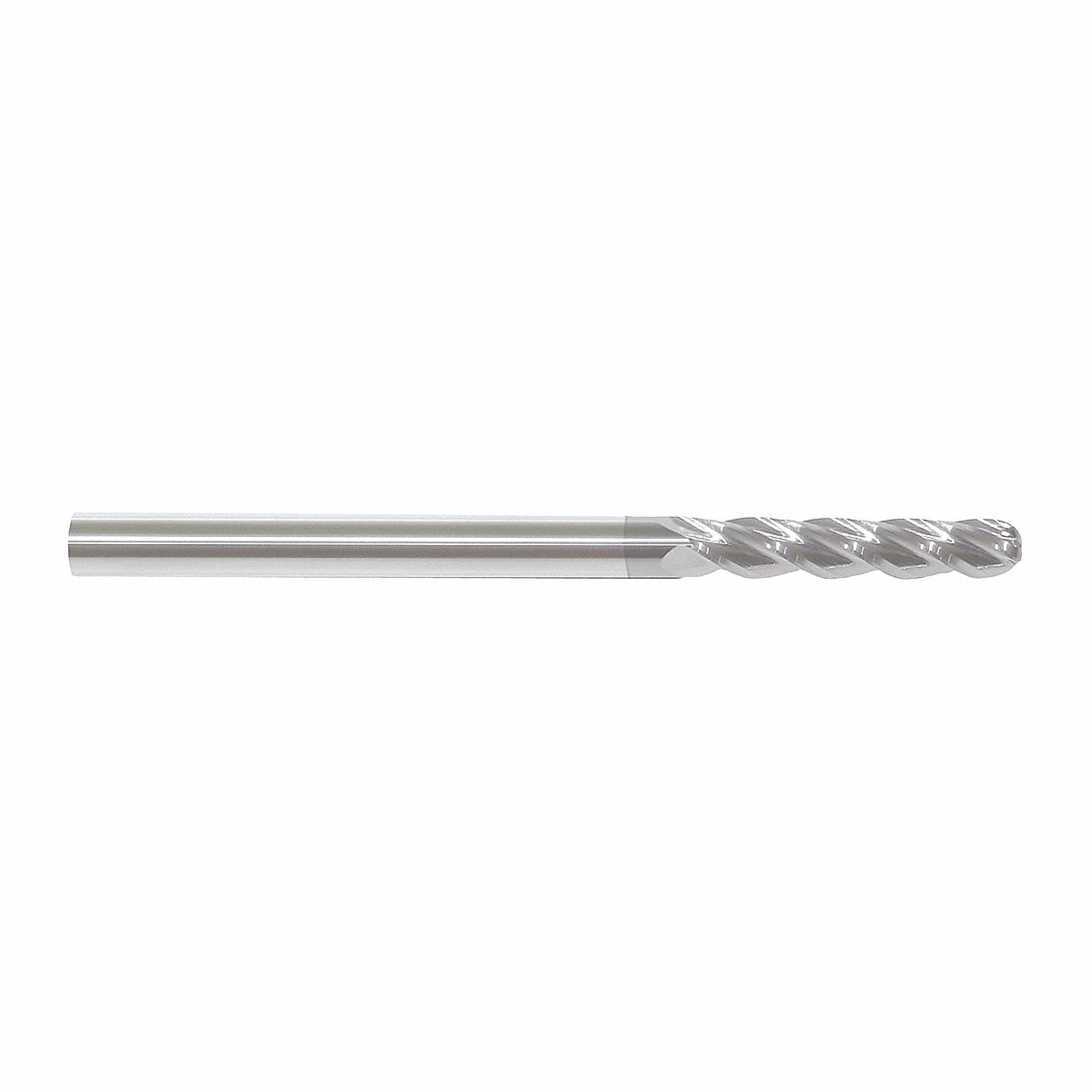

Ball End Mill 0.15625 in Carbide (226-001008)

Flute Spacing: Fixed

Measurement System: Inch

List Number: 220

Material - Machining: Carbide

Finish - Machining: TiCN

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

Flute Type: Spiral

Milling Diameter: 0.15625 in, 5/32 in

Length of Cut: 0.75 in, 3/4 in

Overall Length: 2-1/2 in

Shank Dia.: 3/16 in

End Mill Style: Ball Nose

ISO Material Group: H, P, N, K

Shank Type - Machining: Weldon Flat

End Mill Application: Roughing/Finishing

End Mill Cutting Type: Center Cutting

Number of Flutes: 4

Helix Angle: 30 Degrees

Cutting Direction: Right Hand

Single End/Double End: Single
