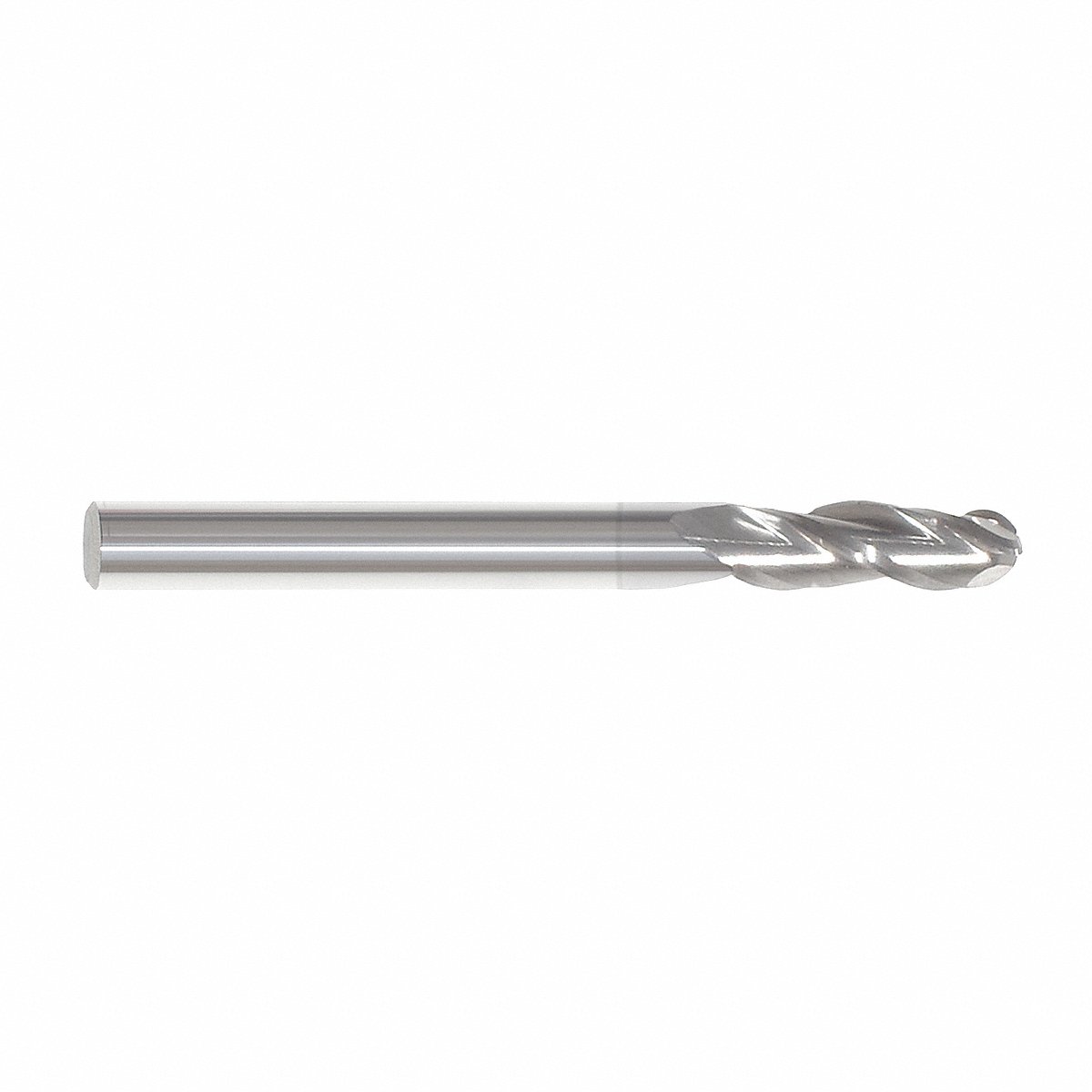

Ball End Mill 0.25 in Carbide (222-001142)

Measurement System: Inch

End Mill Application: Roughing/Finishing

Flute Type: Spiral

Material - Machining: Carbide

Overall Length: 2-1/2 in

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

Cutting Direction: Right Hand

Number of Flutes: 3

Flute Spacing: Fixed

Length of Cut: 0.75 in, 3/4 in

Helix Angle: 30 Degrees

Shank Type - Machining: Weldon Flat

Finish - Machining: TiCN

Milling Diameter: 1/4 in, 0.25 in

End Mill Cutting Type: Center Cutting

Shank Dia.: 1/4 in

ISO Material Group: H, P, N, K

End Mill Style: Ball Nose

List Number: 222

Single End/Double End: Single
