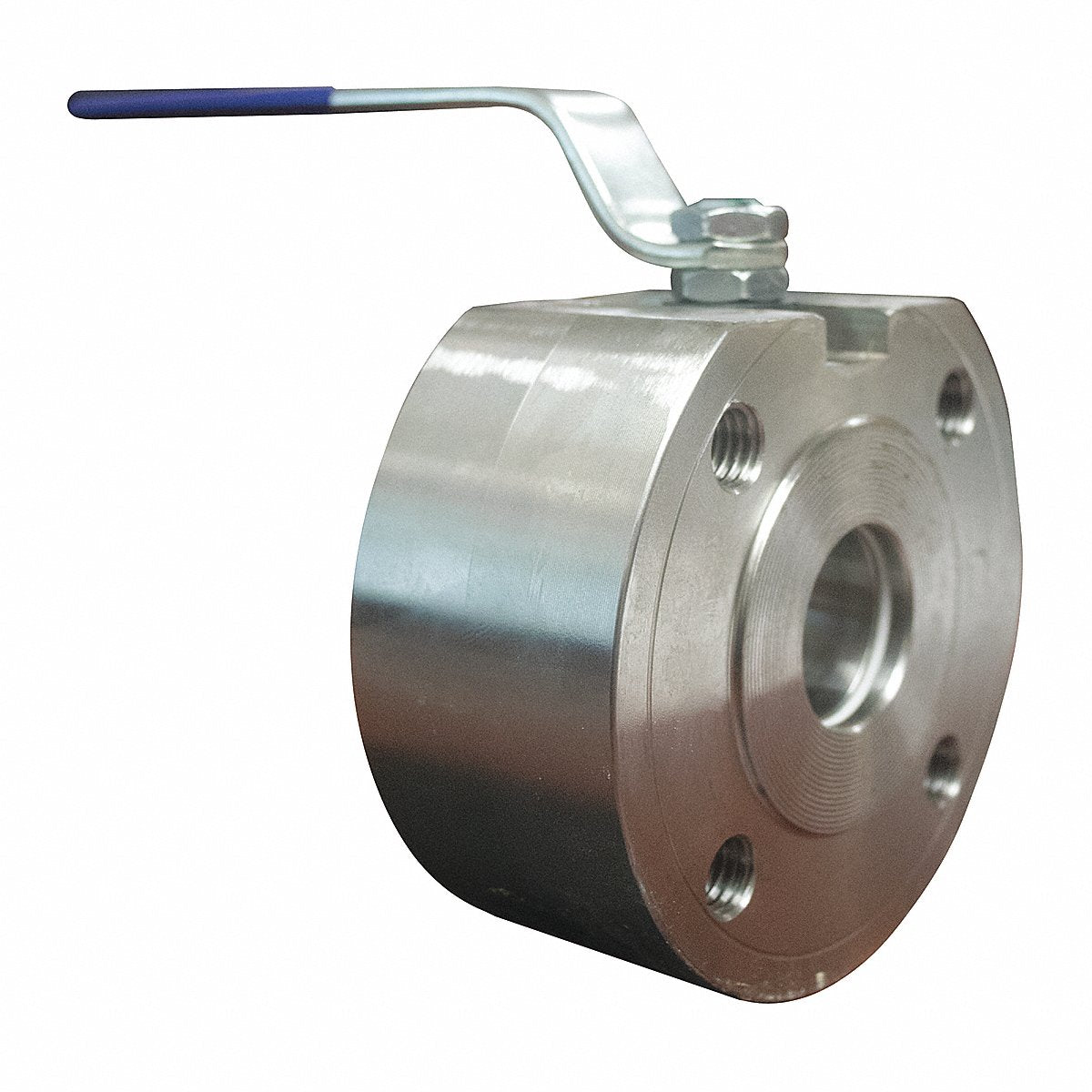

Bonomi Manual 2-Way Ball Valve Flange 316 Stainless Steel (720016-11/4")

Valve Body Style: Straight

3-A Standard Compliance: Not Rated

Overall Length: 2.12 in

Maximum Pressure - Operating: 276 psi

Valve Ways: 2-Way

Standards: ISO 15156, NACE MR0175, TUV T.A. Luft Approved, ANSI B16.34, ISO 5211, NACE MR0103

Media Temp. Range: -4 Degrees F to 366 Degrees F

Vacuum Service Rating: 29 in Hg

Ball Port Style: Full Port

Stem Material: 316 Stainless Steel

For Media: Water

Handle Material: Cast Iron, Steel

Body Material: 316 Stainless Steel

Vented Ball Valve: Non-Vented

Connection Type: Class 150 Flange

Handle: Locking Lever

Nominal Valve Size: 1-1/4 in

Seat Material: RPTFE

Ball Material: 316 Stainless Steel

Color - Valve Handle: Blue

Seal Material: FKM

Coefficient of Volume (Cv): 120.1

ANSI Flange Class: Class 150

Maximum Pressure - Steam: 100 psi

Valve Construction: One-Piece

Maximum Pressure - Combustible Gas: Not Rated
