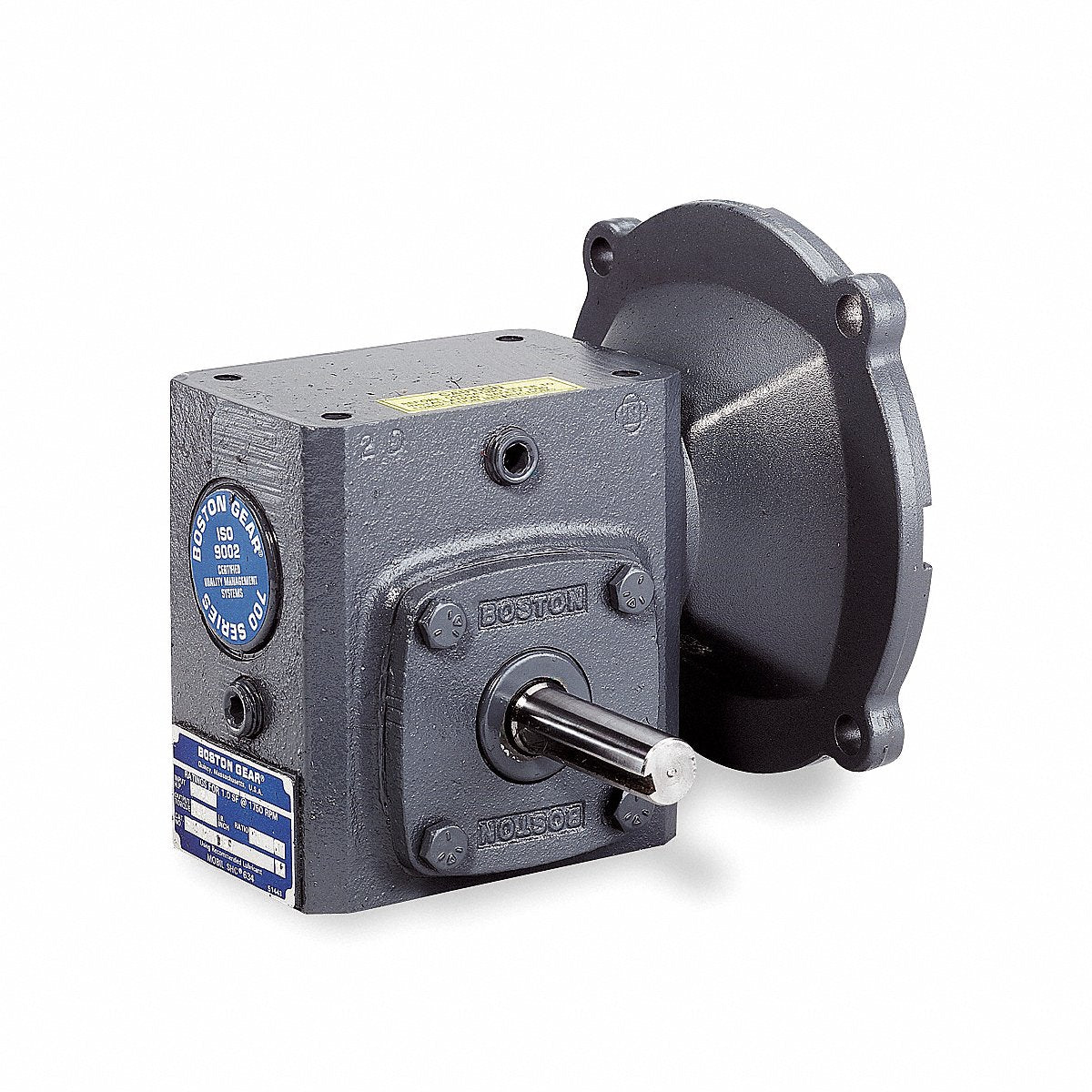

Boston Gear Worm Speed Reducer, C-Face Mount, 5:1 Ratio, NEMA 56C, Direct Drive (F710-5-B5-G)

Mounting Orientation: Any Angle

Base to Center: 1.31 in

Gear Type: Worm

Input Drive Type: Direct Drive

Maximum Input Horsepower: 0.5 hp

Gear Ratio: 5: 1

Worm Center Distance: 1 in

Nameplate Speed Range: 251 to 500 RPM

Output Shaft Type: Round

Overhung Load Capacity: 150 lb

Maximum Output Torque: 82 in-lb

Motor Frame Designation: 56C

Available Speed Reducer Options:

C-Face Mounted Worm Speed Reducer:
5:1 Ratio, Direct Drive, NEMA 56C, 0.5 HP Max Input, 82 in-lb Torque (SKU: F710-5-B5-G)

Indirect Drive Worm Speed Reducers:
10:1 Ratio, 1.5 HP Max Input, 499 in-lb Torque (SKU: 718-10-G),
20:1 Ratio, 0.5 HP Max Input, 302 in-lb Torque (SKU: 715-20-G),
30:1 Ratio, 0.3 HP Max Input, 274 in-lb Torque (SKU: 715-30-G)
