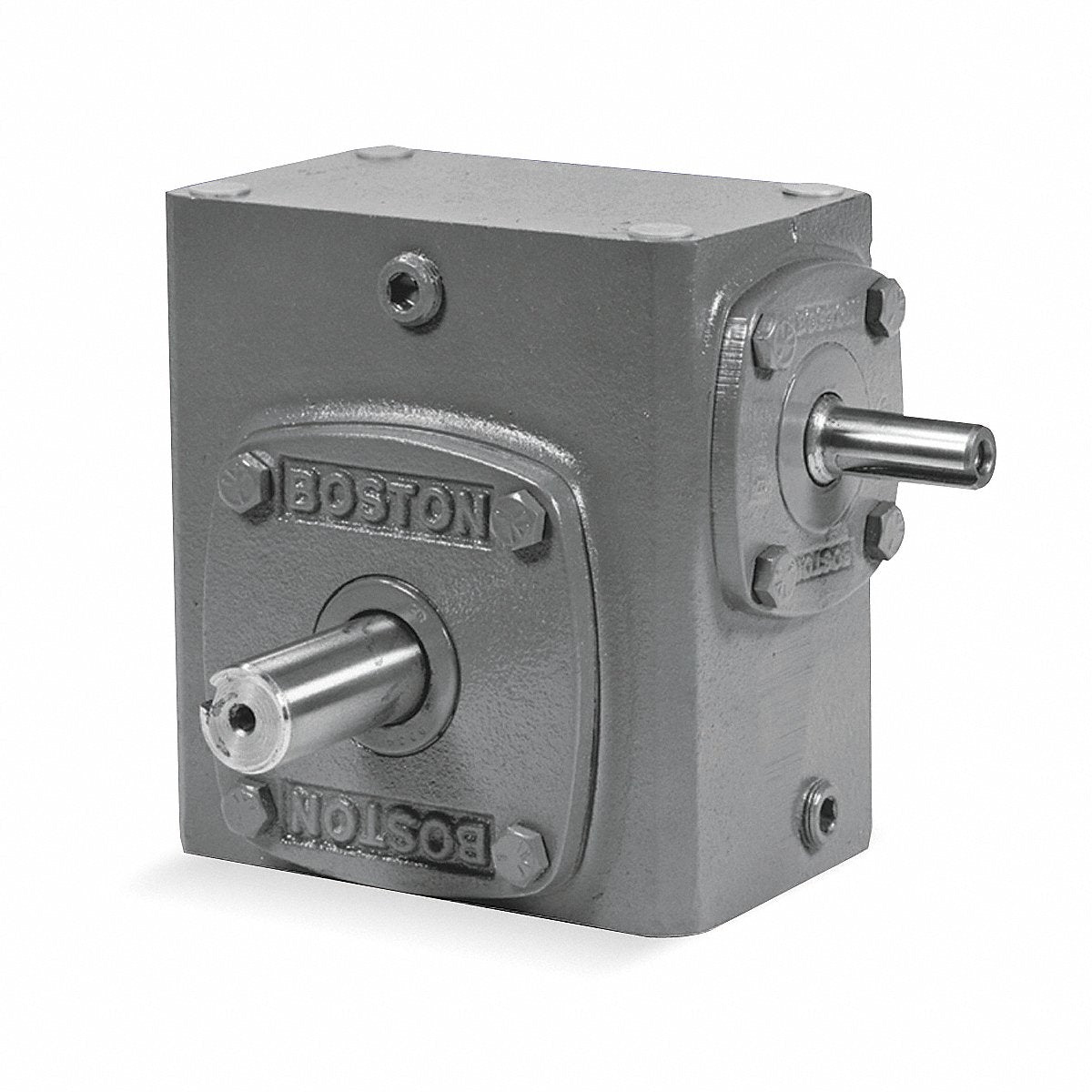

Boston Gear Worm Speed Reducer, Indirect Drive, 30:1 Ratio, Round Output Shaft (715-30-G)

Base to Center: 1.91 in

Gear Type: Worm

Maximum Output Torque: 274 in-lb

Gear Ratio: 30: 1

Overhung Load Capacity: 150 lb

Worm Center Distance: 1.54 in

Maximum Input Horsepower: 0.3 hp

Input Drive Type: Indirect Drive

Output Shaft Type: Round

Nameplate Speed Range: 51 to 75 RPM

Available Speed Reducer Options:

C-Face Mounted Worm Speed Reducer:
5:1 Ratio, Direct Drive, NEMA 56C, 0.5 HP Max Input, 82 in-lb Torque (SKU: F710-5-B5-G)

Indirect Drive Worm Speed Reducers:
10:1 Ratio, 1.5 HP Max Input, 499 in-lb Torque (SKU: 718-10-G),
20:1 Ratio, 0.5 HP Max Input, 302 in-lb Torque (SKU: 715-20-G),
30:1 Ratio, 0.3 HP Max Input, 274 in-lb Torque (SKU: 715-30-G)
