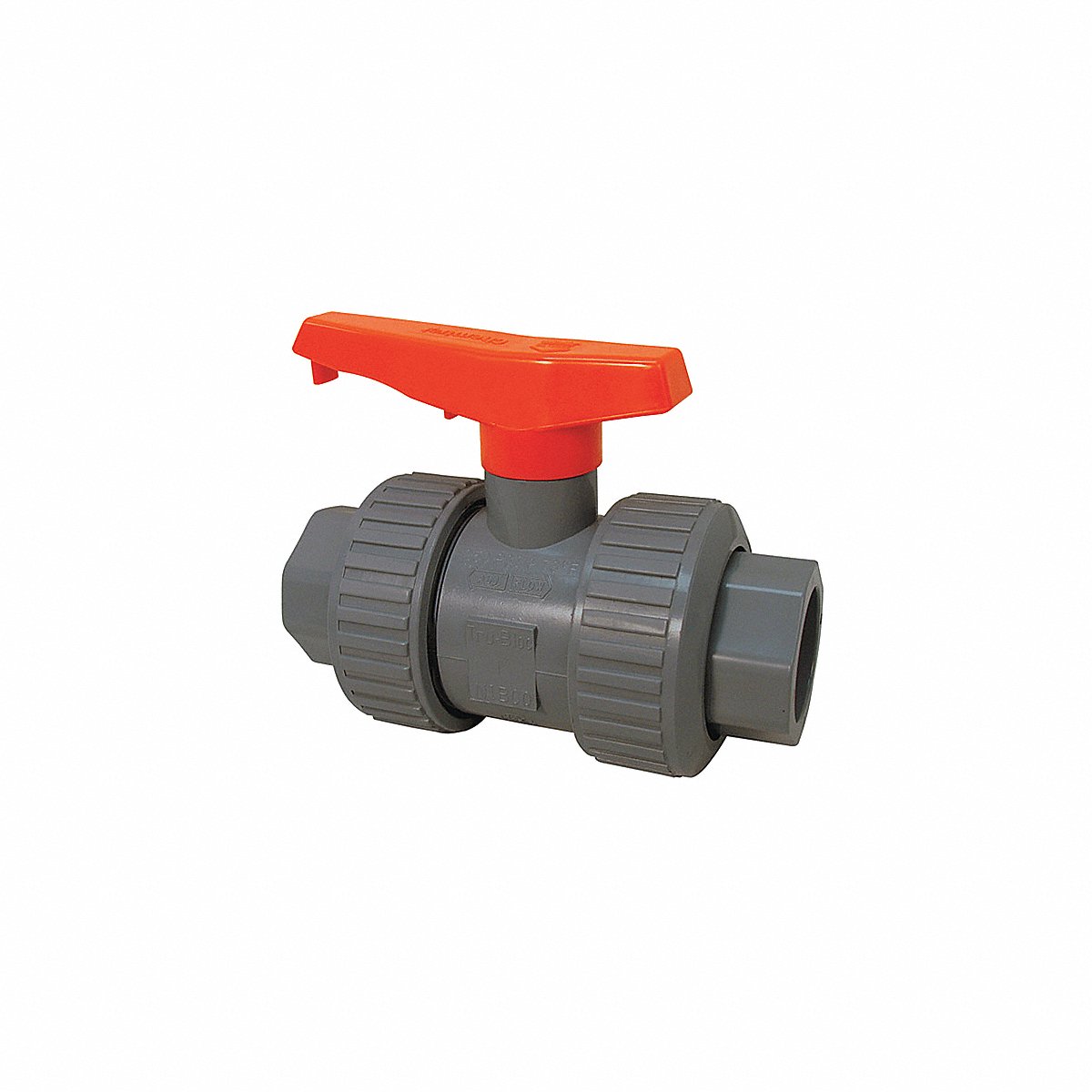

Chemtrol Manual 2-Way Ball Valve, Socket, Pvc (MA930U8)

Valve Construction: Three-Piece

Overall Length: 7.34 in

Ball Material: PVC

Nominal Valve Size: 3/4 in

Stem Material: PVC

Color - Valve Handle: Orange

Maximum Pressure - Combustible Gas: Not Rated

Seat Material: PTFE

Pipe Schedule Compatibility: Schedule 80

Standards: ASTM F1970, NSF/ANSI Standard 14, NSF/ANSI Standard 61 and Annex G

NSF Certifications for Food and Drinking Water: NSF 61

Body Material: PVC

Connection Type: True-Union Socket/True-Union NPT

Media Temp. Range: 73 Degrees F - 140 Degrees F

Handle Material: PVC

Ball Port Style: Full Port

Handle: Lever

Maximum Pressure - Steam: Not Rated

3-A Standard Compliance: Not Rated

Maximum Pressure - Operating: 250 psi

Valve Ways: 2-Way

Seal Material: FKM

Valve Body Style: Straight

For Media: Water, Corrosive Chemicals
