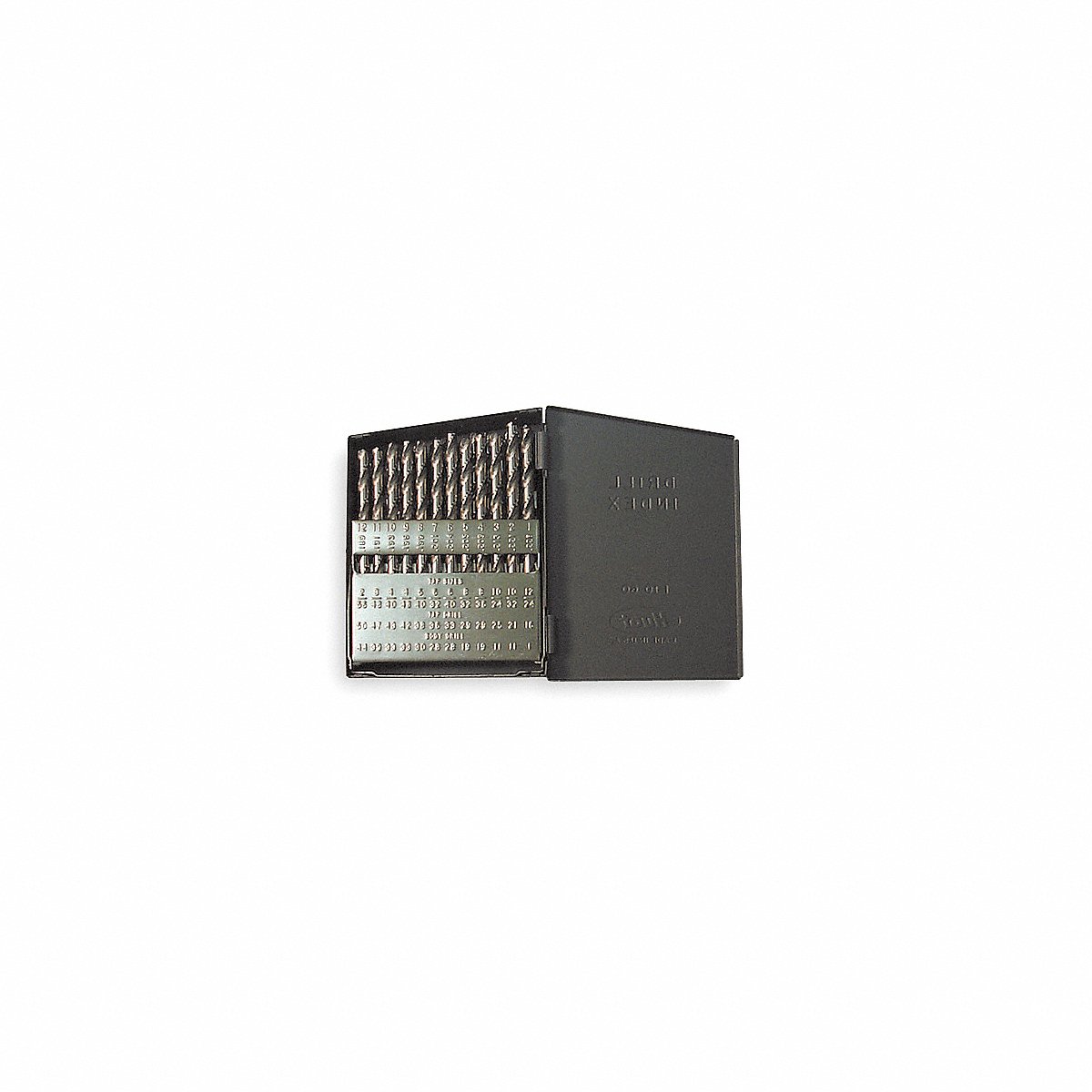

Chicago-Latrobe Jobber Drill Set 60 pc HSS (45639)

Number of Drill Bits: 60

Material: High Speed Steel

Cutting Direction: Right Hand

Finish/Coating: Black Oxide

Flute Type: Spiral

Drill Bit Point Angle: 135 Degrees

Coolant Fed: Non-Coolant Through

Drill Length Class: Jobber-Length

List Number: 150ASP

Helix Type: Regular Spiral

Size Decimal Equivalent: 0.1360, 0.0820, 0.1910, 0.0700, 0.0785, 0.0420, 0.1110, 0.1990, 0.1130, 0.1405, 0.1800, 0.1520, 0.0550, 0.0430, 0.2210, 0.0670, 0.2055, 0.1935, 0.1015, 0.0960, 0.1770, 0.1495, 0.1890, 0.0730, 0.1820, 0.1540, 0.1660, 0.2010, 0.2130, 0.1040, 0.1160, 0.2090, 0.0860, 0.0465, 0.0980, 0.1570, 0.0635, 0.0995, 0.1960, 0.1200, 0.0595, 0.1440, 0.1285, 0.0400, 0.1610, 0.1730, 0.1850, 0.0520, 0.1695, 0.0760, 0.1470, 0.1590, 0.2040, 0.2280, 0.0935, 0.0810, 0.0410, 0.1100, 0.1065, 0.0890

Drill Bit Case Type: Metal Index

Drill Bit Size: #10, #21, #20, #12, #11, #14, #13, #16, #15, #18, #17, #19, #30, #32, #31, #23, #22, #25, #24, #27, #26, #29, #28, #5, #4, #7, #6, #1, #3, #2, #41, #9, #40, #8, #43, #42, #34, #33, #36, #35, #38, #37, #39, #50, #52, #51, #54, #53, #45, #44, #47, #46, #49, #48, #60, #56, #55, #58, #57, #59

Number of Flutes: 2

Standards: NAS 907 Type B

Shank Type: Straight

Measurement System: Wire

Point Type: Split
