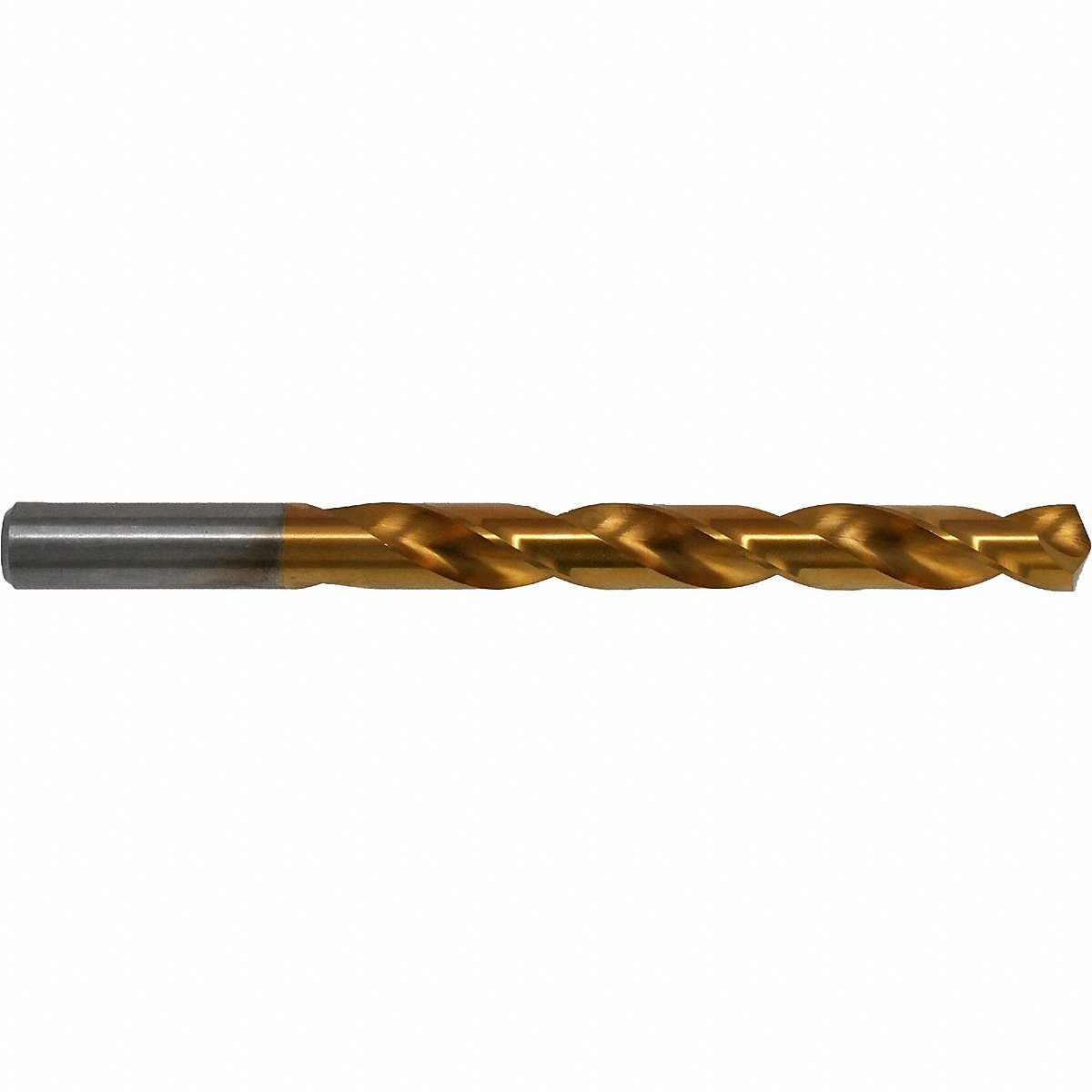

Chicago-Latrobe Jobber Length Drill Bit 1/16 in Cobalt (54007)

List Number: 550-TN

Point Type: Split

Standards: NAS 907 Type J

Measurement System: Fractional Inch

Drill Bit Size: 1/16 in

Drill Length Class: Jobber-Length

Drill Bit Point Angle: 135 Degrees

Coolant Fed: Non-Coolant Through

Finish/Coating: TiN

Cutting Direction: Right Hand

Overall Length: 1-7/8 in

Shank Diameter: 1/16 in

Material: Cobalt

Helix Type: Regular Spiral

Size Decimal Equivalent: 0.0625

Number of Flutes: 2

Shank Type: Straight

Flute Length: 7/8 in

ISO Material Group: H, S, P, N, M, K

Flute Type: Spiral

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel
