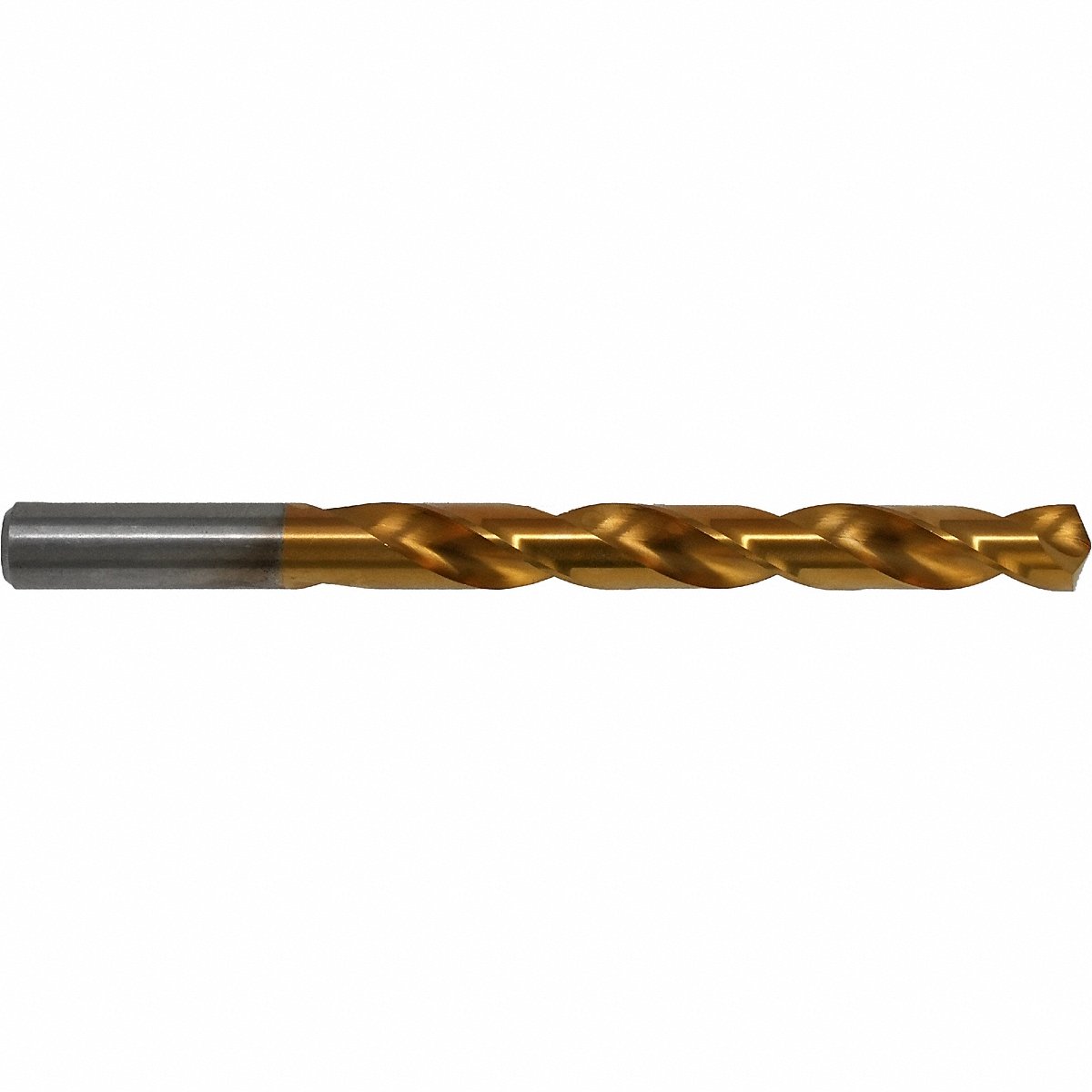

Chicago-Latrobe Jobber Length Drill Bit 1/8 in Cobalt (54050)

Helix Type: Regular Spiral

Flute Length: 1-5/8 in

Drill Length Class: Jobber-Length

Overall Length: 2-3/4 in

Drill Bit Point Angle: 135 Degrees

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Shank Type: Straight

Drill Bit Size: 1/8 in

Shank Diameter: 1/8 in

Standards: NAS 907 Type J

Measurement System: Fractional Inch

Size Decimal Equivalent: 0.1250

Coolant Fed: Non-Coolant Through

ISO Material Group: H, S, P, N, M, K

Finish/Coating: TiN

List Number: 550-TN

Point Type: Split

Flute Type: Spiral

Number of Flutes: 2

Cutting Direction: Right Hand

Material: Cobalt
