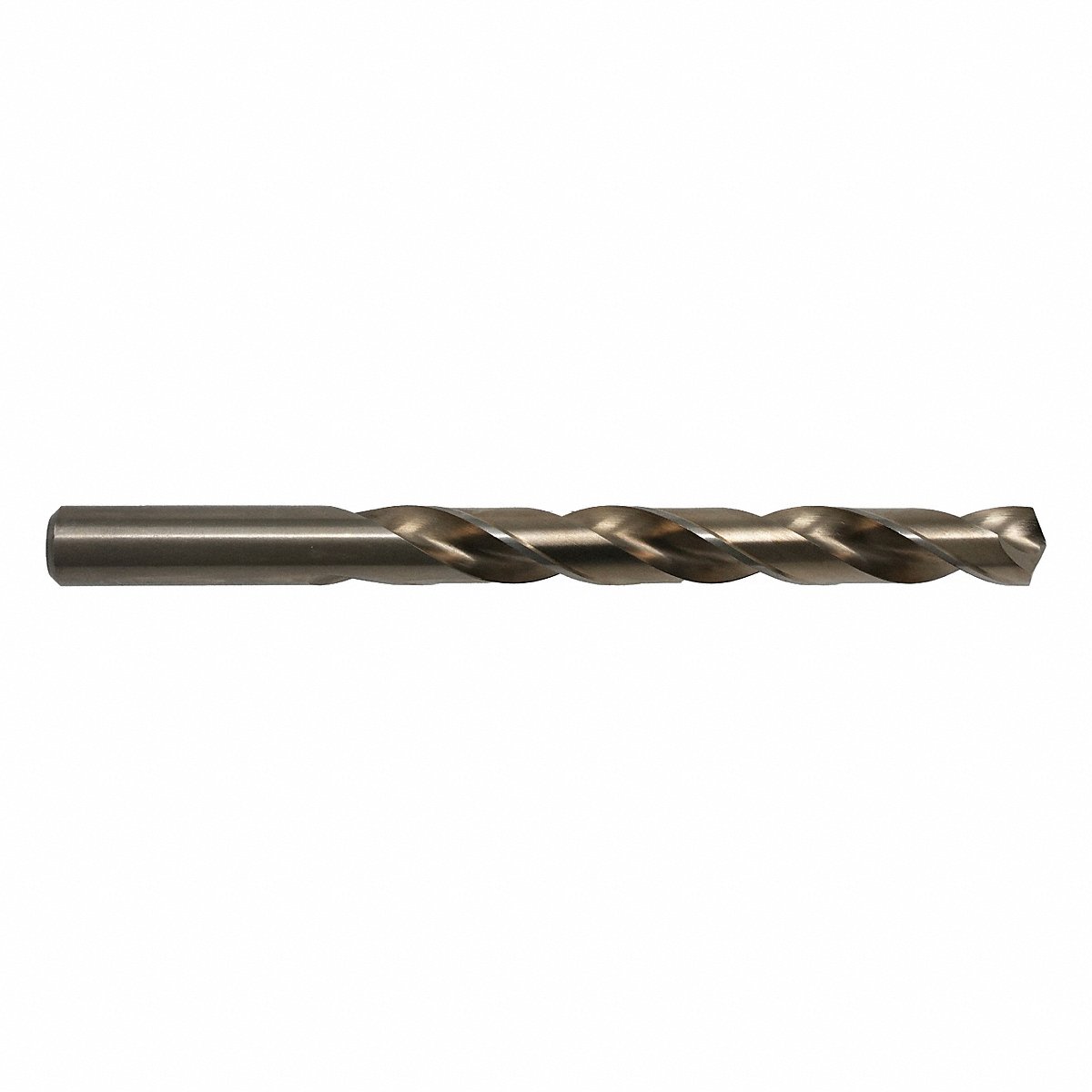

Chicago-Latrobe Jobber Length Drill Bit #12 Cobalt (47746)

Flute Type: Spiral

Drill Length Class: Jobber-Length

Overall Length: 3-1/2 in

Size Decimal Equivalent: 0.1890

Helix Type: Regular Spiral

List Number: 550ASP

Shank Diameter: 4.8 mm

Flute Length: 2-5/16 in

Measurement System: Wire

Coolant Fed: Non-Coolant Through

Drill Bit Point Angle: 135 Degrees

ISO Material Group: S, P, N, M, K

Point Type: Split

Cutting Direction: Right Hand

Drill Bit Size: #12

Material: Cobalt

Number of Flutes: 2

Finish/Coating: Straw/Bronze, Straw

Shank Type: Straight

Standards: NAS 907 Type B

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel
