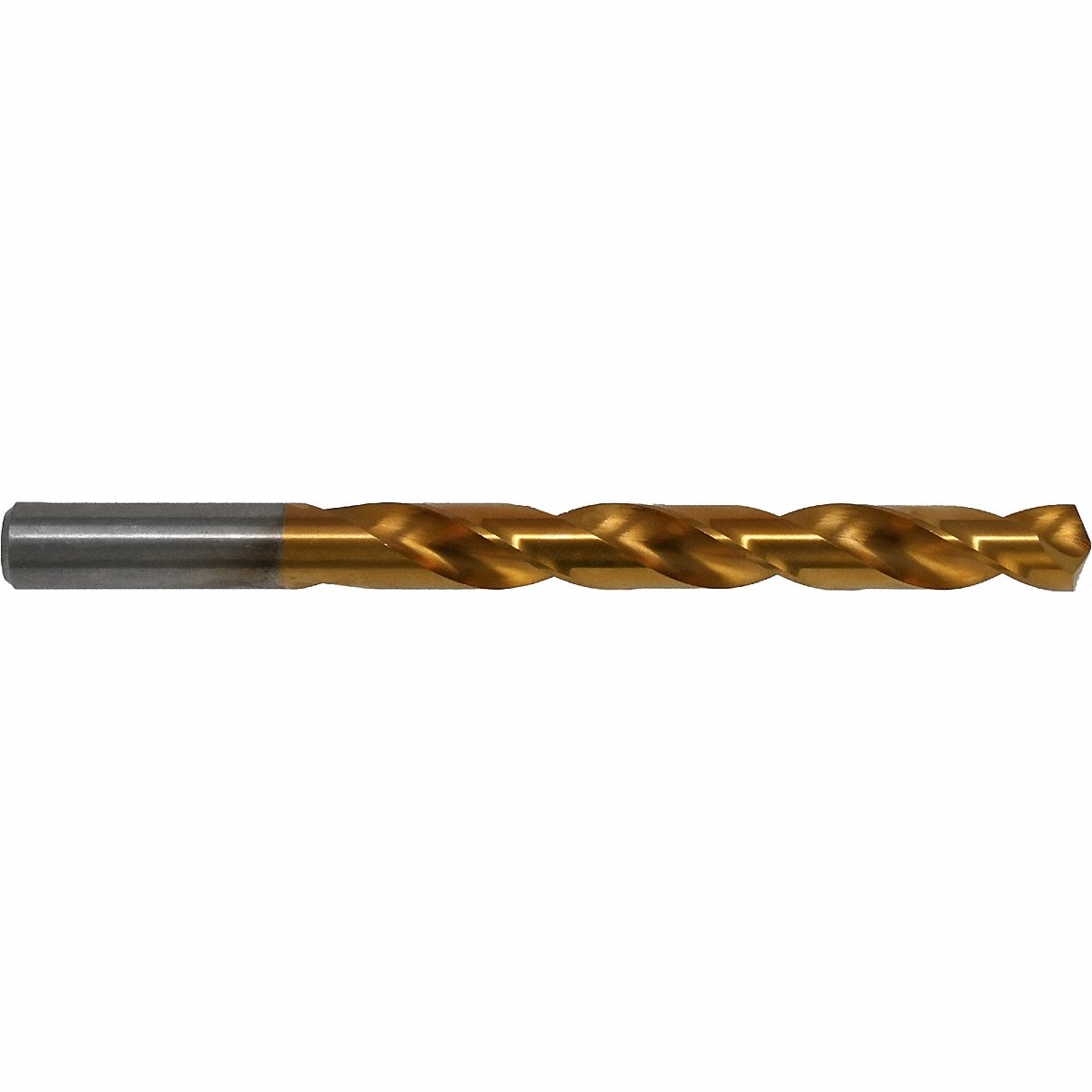

Chicago-Latrobe Jobber Length Drill Bit 12 mm Cobalt (48014)

Drill Length Class: Jobber-Length

Helix Type: Regular Spiral

Overall Length: 151 mm

Finish/Coating: TiN

Point Type: Split

Shank Type: Straight

Cutting Direction: Right Hand

List Number: 550ASP-TN

Drill Bit Size: 12 mm

Measurement System: Metric

Number of Flutes: 2

Material: Cobalt

Flute Length: 101 mm

ISO Material Group: S, P, N, M, K

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Drill Bit Point Angle: 135 Degrees

Size Decimal Equivalent: 0.4724

Coolant Fed: Non-Coolant Through

Shank Diameter: 12 mm

Flute Type: Spiral

Standards: NAS 907 Type B, DIN 338
