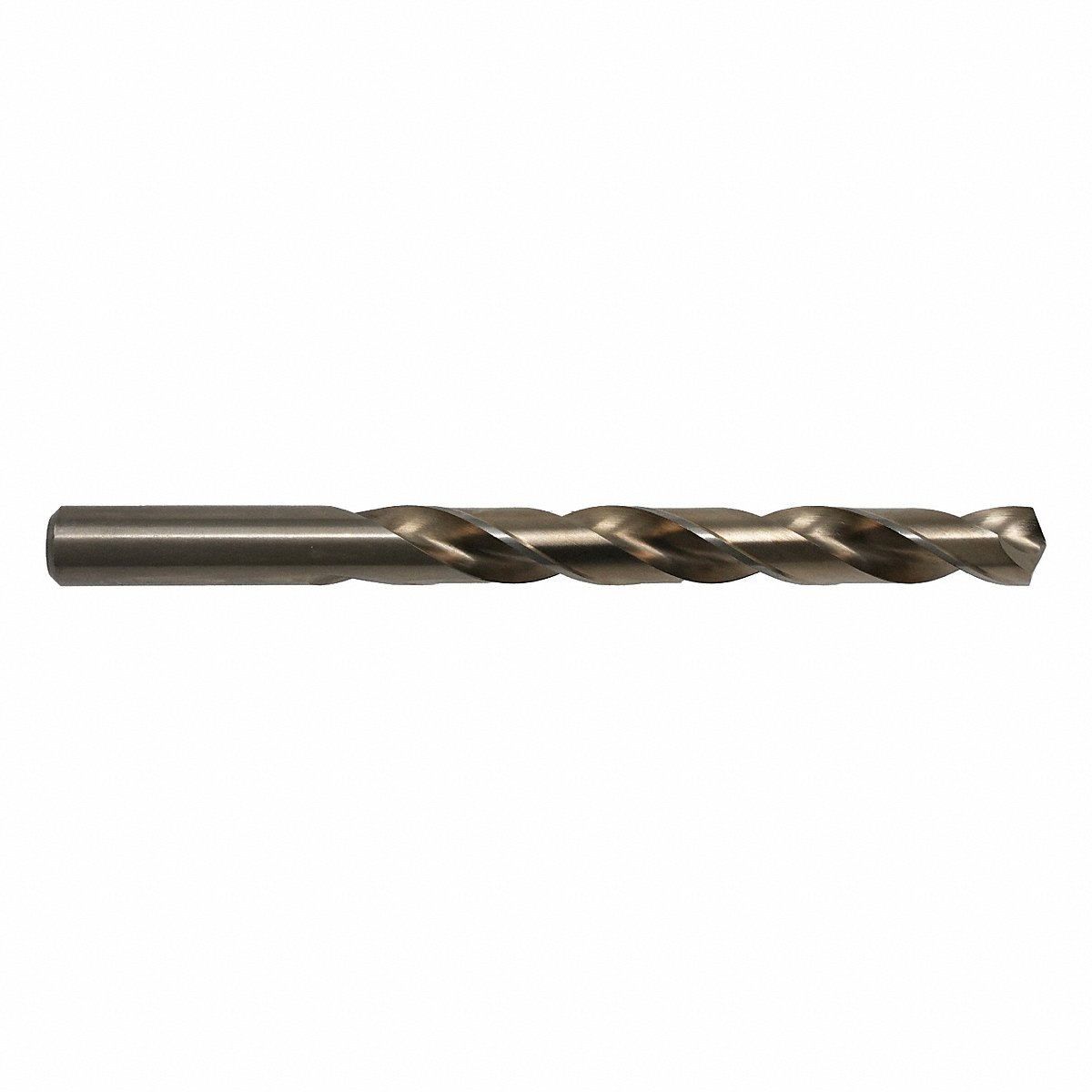

Chicago-Latrobe Jobber Length Drill Bit #30 Cobalt (46700)

Cutting Direction: Right Hand

Point Type: Split

Helix Type: Regular Spiral

Shank Diameter: 3.2 mm

Shank Type: Straight

Overall Length: 2-3/4 in

Standards: NAS 907 Type J

Drill Bit Size: #30

Measurement System: Wire

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Number of Flutes: 2

ISO Material Group: H, S, P, N, M, K

List Number: 550

Flute Type: Spiral

Size Decimal Equivalent: 0.1285

Coolant Fed: Non-Coolant Through

Material: Cobalt

Flute Length: 1-5/8 in

Drill Length Class: Jobber-Length

Drill Bit Point Angle: 135 Degrees

Finish/Coating: Straw/Bronze, Straw
