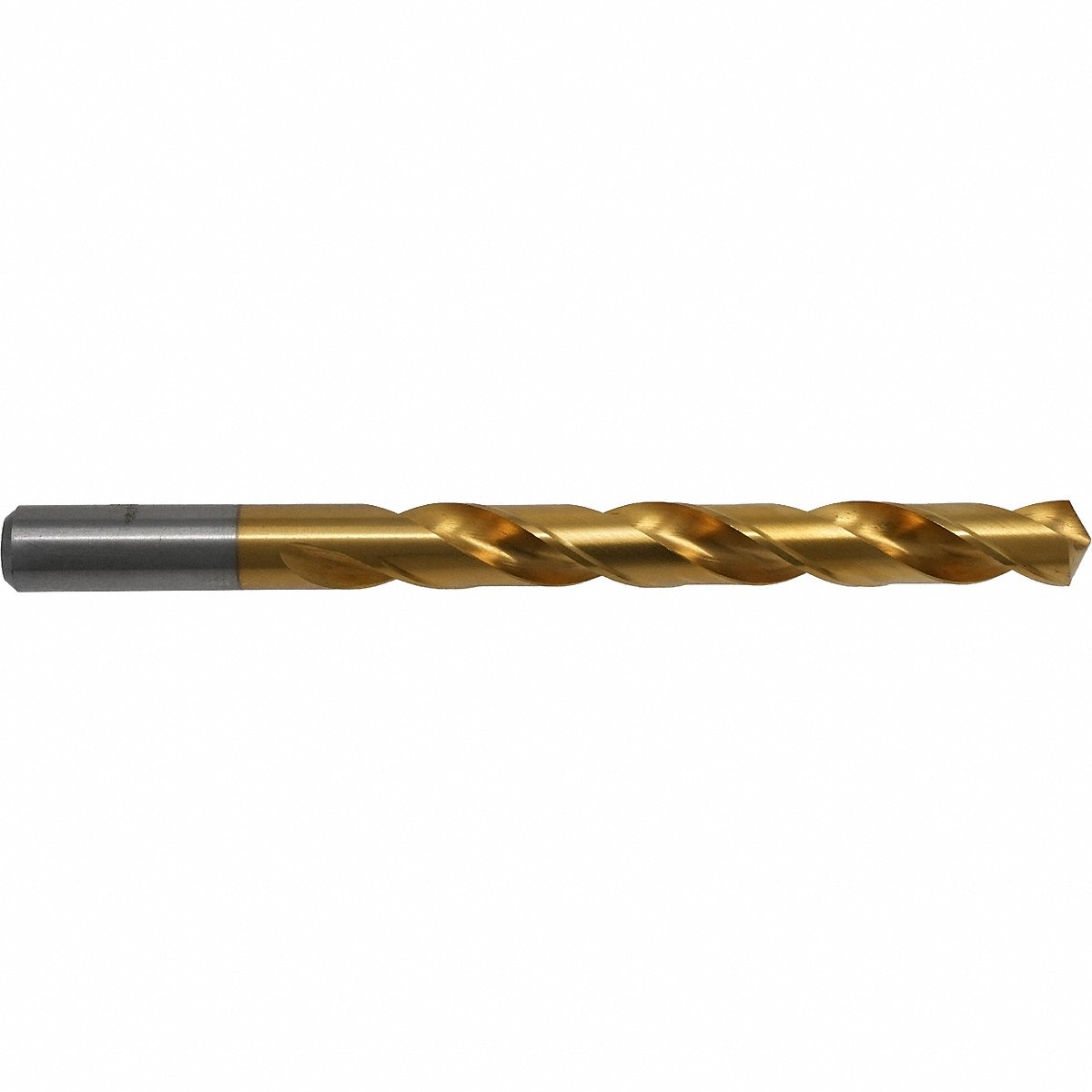

Chicago-Latrobe Jobber Length Drill Bit #67 HSS (70167)

Size Decimal Equivalent: 0.0320

Finish/Coating: TiN

Standards: ANSI

Drill Bit Size: #67

Drill Length Class: Jobber-Length

Material: High Speed Steel

Shank Diameter: 0.8 mm

Flute Length: 1/2 in

Measurement System: Wire

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Overall Length: 1-3/8 in

Shank Type: Straight

Drill Bit Point Angle: 118 Degrees

ISO Material Group: P, N, M, K

Number of Flutes: 2

Coolant Fed: Non-Coolant Through

List Number: 150-TN

Helix Type: Regular Spiral

Point Type: Conventional

Cutting Direction: Right Hand

Flute Type: Spiral
