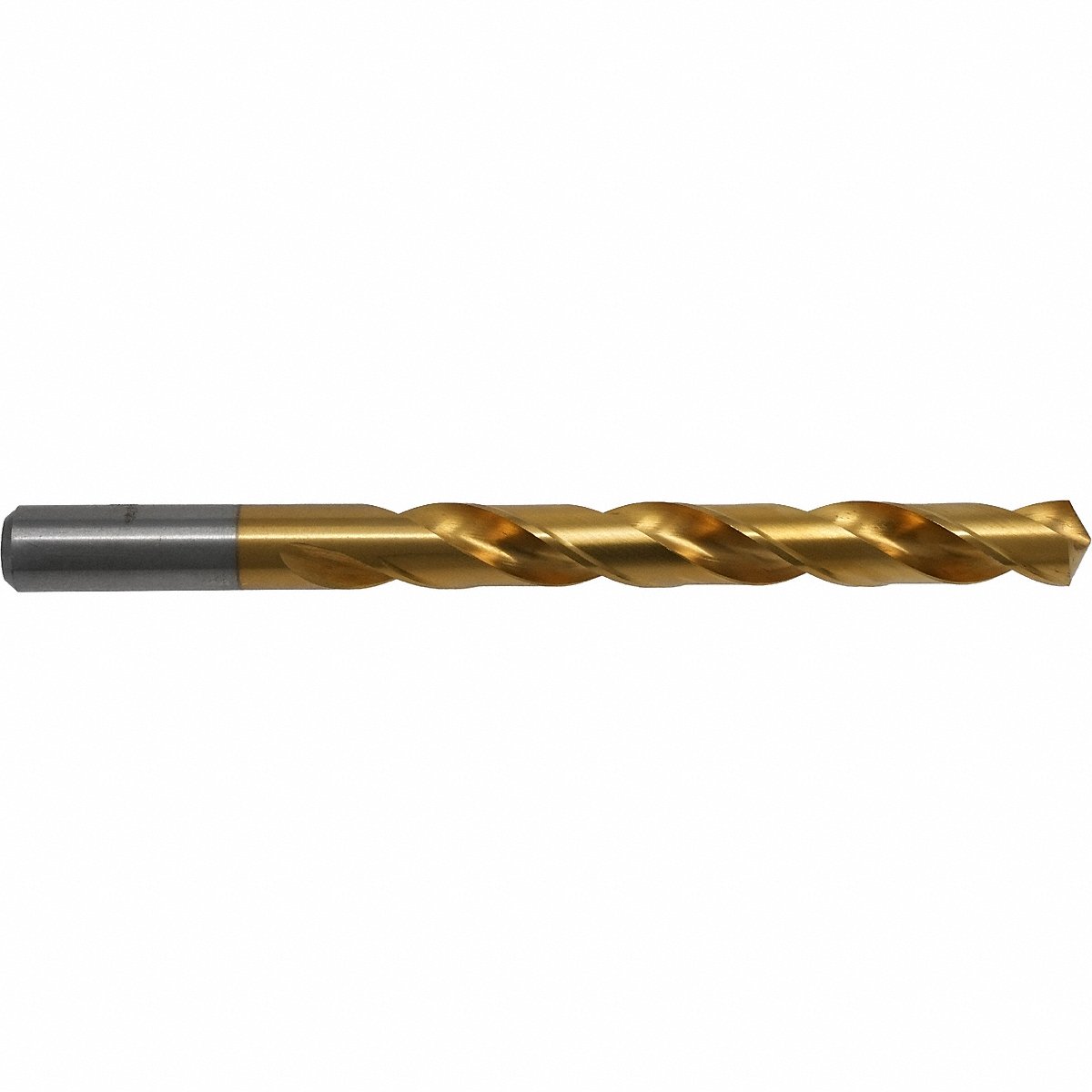

Chicago-Latrobe Jobber Length Drill Bit #70 HSS (70170)

ISO Material Group: P, N, M, K

Size Decimal Equivalent: 0.0280

Cutting Direction: Right Hand

Drill Bit Size: #70

Shank Type: Straight

Measurement System: Wire

Helix Type: Regular Spiral

Number of Flutes: 2

Coolant Fed: Non-Coolant Through

Flute Type: Spiral

Material: High Speed Steel

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

List Number: 150-TN

Overall Length: 1-1/4 in

Standards: ANSI

Flute Length: 3/8 in

Shank Diameter: 0.7 mm

Drill Bit Point Angle: 118 Degrees

Drill Length Class: Jobber-Length

Finish/Coating: TiN

Point Type: Conventional
