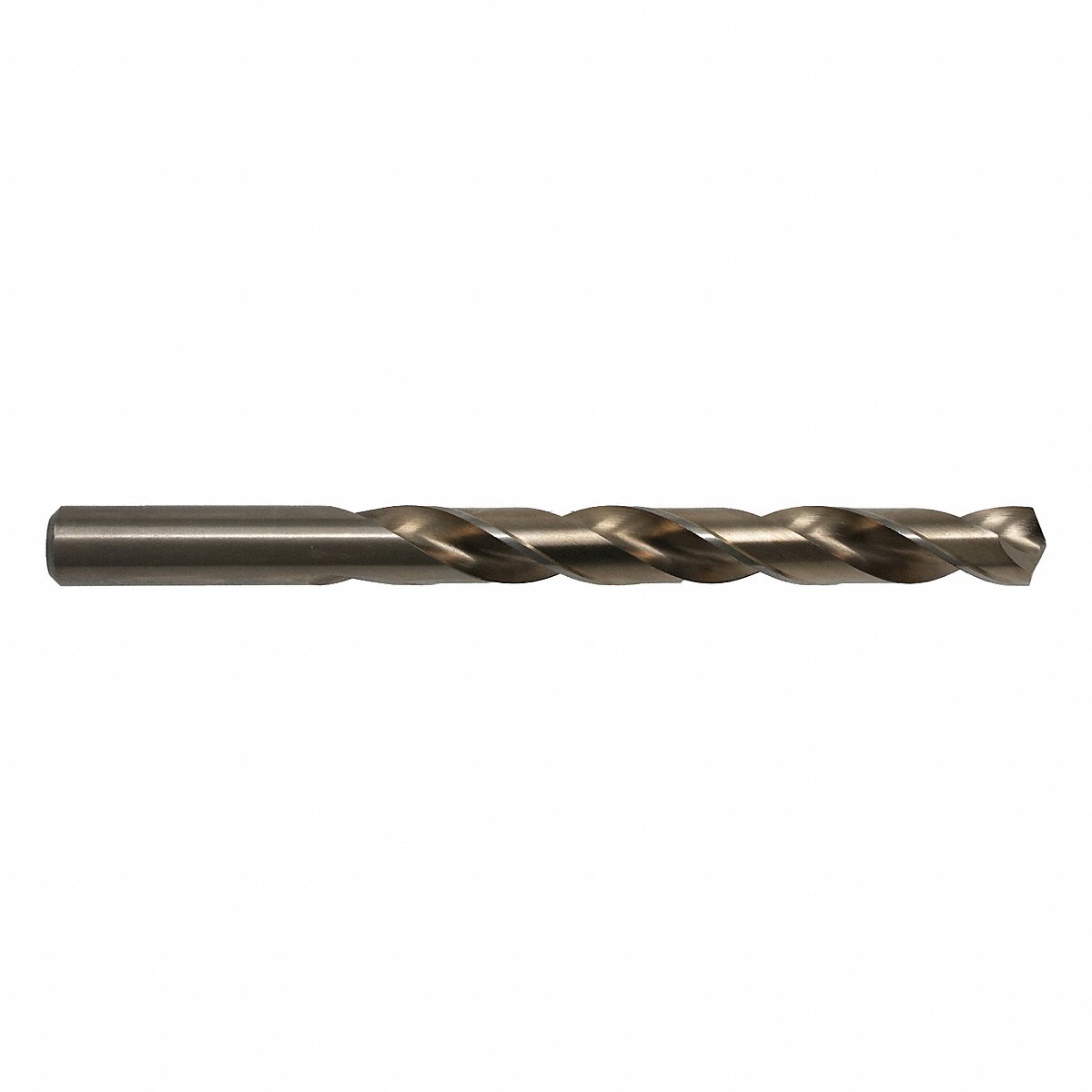

Chicago-Latrobe Jobber Length Drill Bit, Size S, Cobalt (46789)

Shank Type: Straight

ISO Material Group: H, S, P, N, M, K

Drill Bit Point Angle: 135 Degrees

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Coolant Fed: Non-Coolant Through

List Number: 550

Drill Length Class: Jobber-Length

Finish/Coating: Straw/Bronze, Straw

Flute Type: Spiral

Overall Length: 4-7/8 in

Size Decimal Equivalent: 0.3480

Drill Bit Size: S

Flute Length: 3-1/2 in

Measurement System: Letter

Shank Diameter: 8.8 mm

Cutting Direction: Right Hand

Material: Cobalt

Standards: NAS 907 Type J

Number of Flutes: 2

Helix Type: Regular Spiral

Point Type: Split
