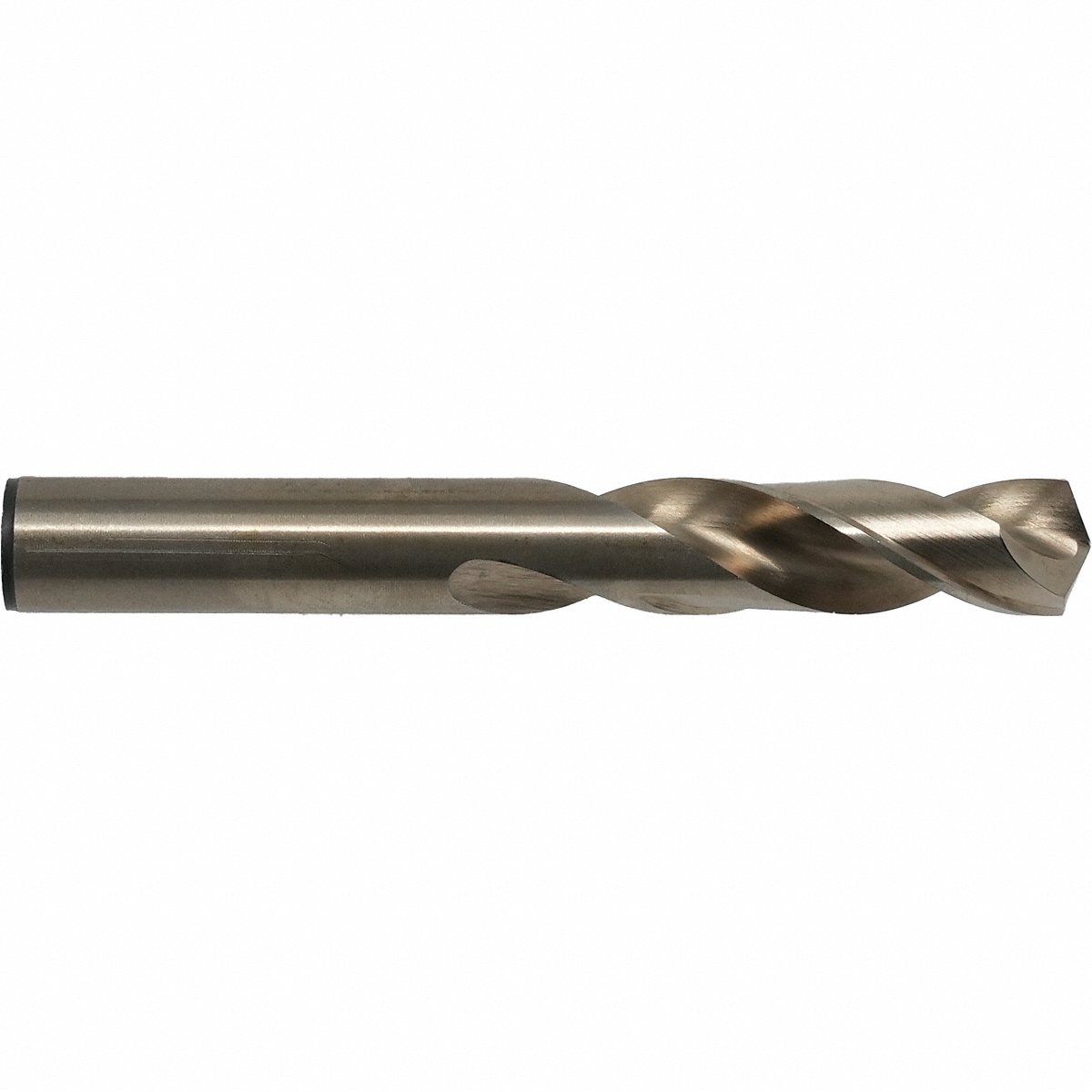

Chicago-Latrobe Screw Machine Drill Bit, #28, Cobalt (50883)

ISO Material Group: H, S, P, N, M, K

Size Decimal Equivalent: 0.1405

Shank Diameter: 3.57 mm

Shank Type: Straight

Measurement System: Wire

Drill Bit Point Angle: 135 Degrees

Drill Length Class: Screw-Machine Length

Material: Cobalt

Number of Flutes: 2

Flute Length: 15/16 in

Point Type: Split

Drill Bit Size: #28

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Tool and Die Steel, Steel, Aluminum, Stainless Steel

List Number: 559

Overall Length: 1-15/16 in

Cutting Direction: Right Hand

Standards: Not Rated

Coolant Fed: Non-Coolant Through

Finish/Coating: Straw

Flute Type: Spiral

Helix Type: Regular Spiral
