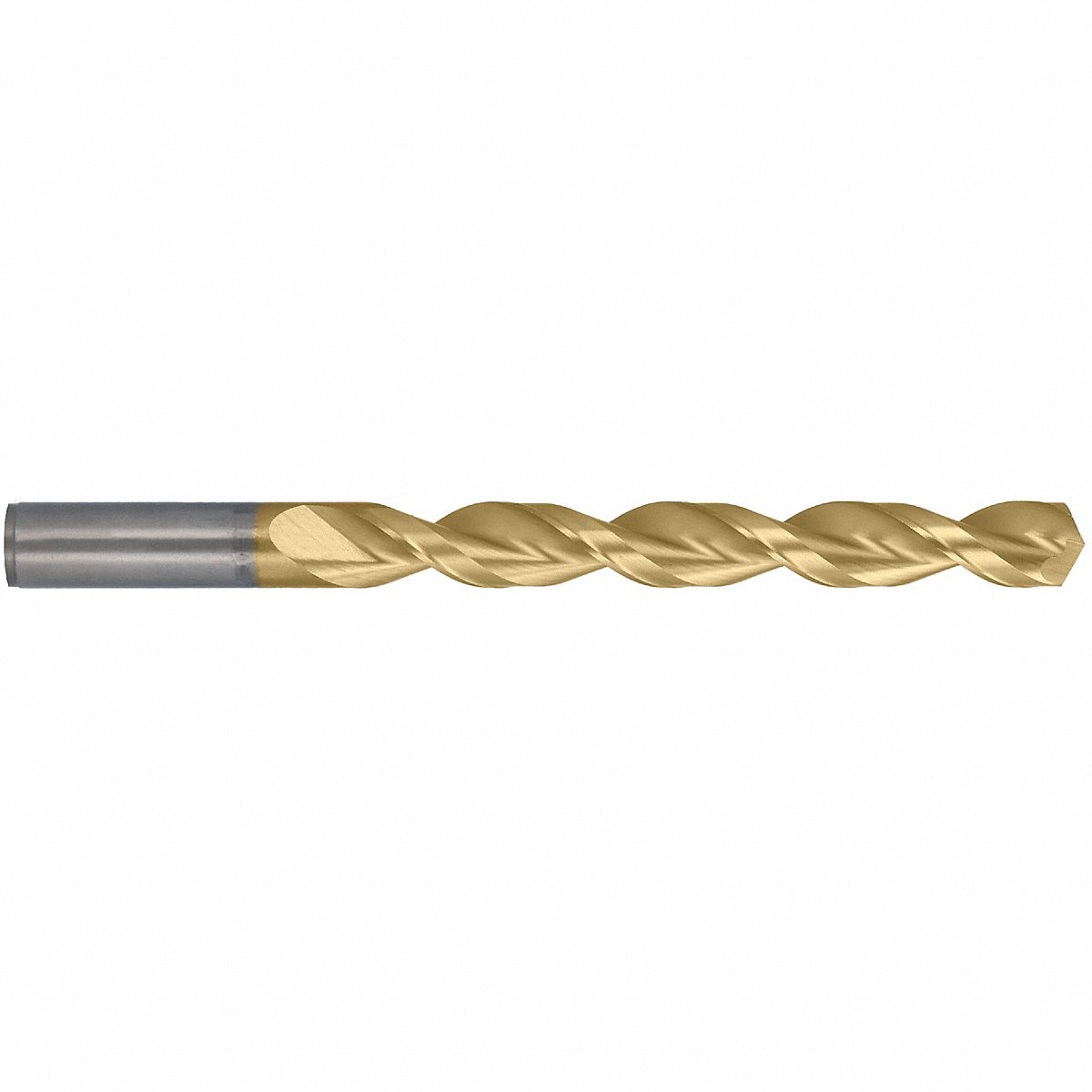

Cleveland Jobber Drill, 1/16", Cobalt, 16" (C16667)

ISO Material Group: P, N, M, K

Size Decimal Equivalent: 0.0625

Drill Bit Point Angle: 135 Degrees

Drill Length Class: Jobber-Length

Helix Type: Fast Spiral

Overall Length: 1-7/8 in

Point Type: Split

List Number: 2075-TN

Shank Diameter: 1/16 in

Flute Length: 7/8 in

Measurement System: Fractional Inch

Material: Cobalt

Drill Bit Size: 1/16 in

Shank Type: Straight

Standards: ASME B94.11M, DIN 338

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Flute Type: Wide Land Parabolic

Cutting Direction: Right Hand

Coolant Fed: Non-Coolant Through

Number of Flutes: 2

Finish/Coating: TiN
