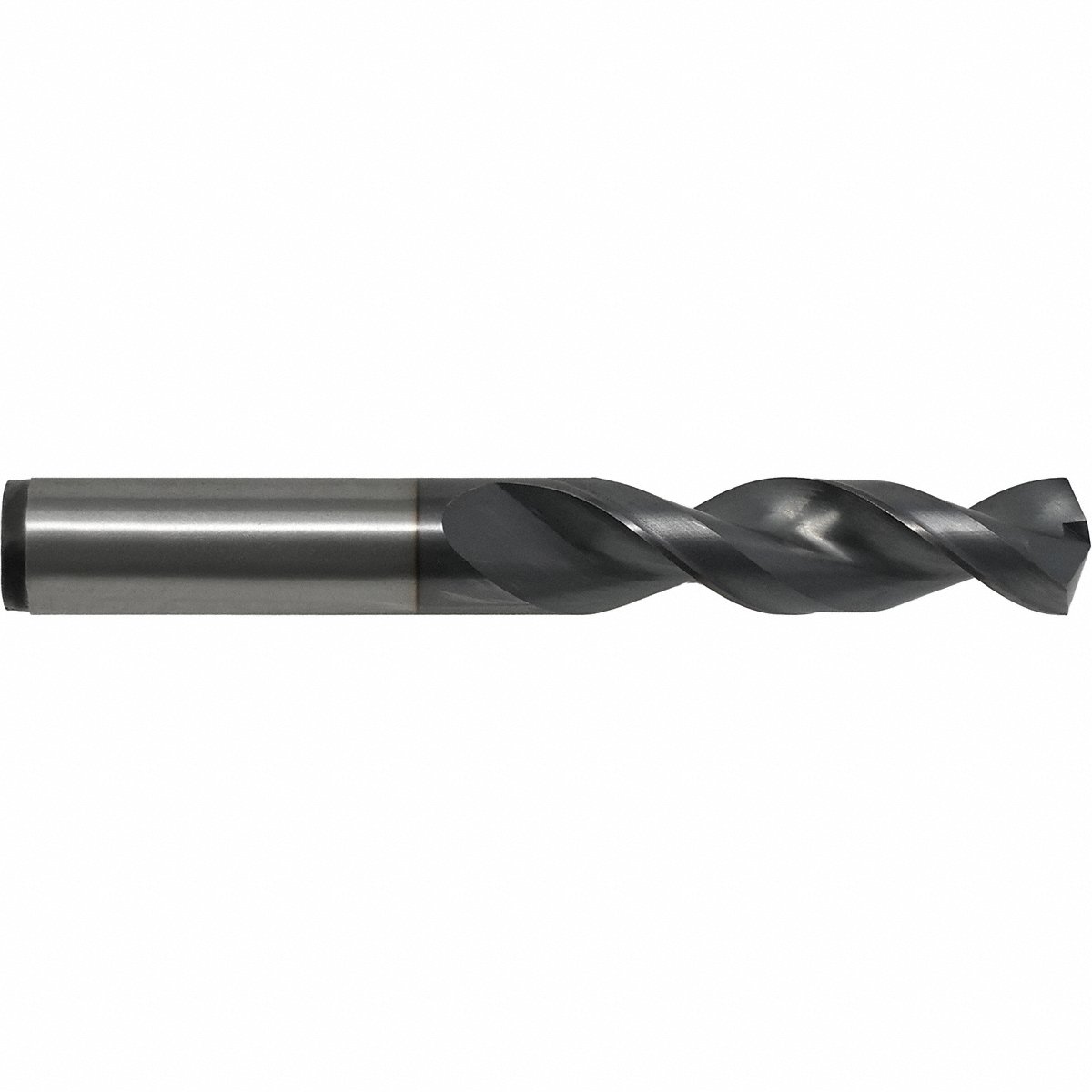

Cleveland Screw Machine Drill Bit, #12, Cobalt, Pack of 10 (C15302)

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Size Decimal Equivalent: 0.1890

Cutting Direction: Right Hand

List Number: 2175-TC

Drill Length Class: Screw-Machine Length

Point Type: Split

Shank Type: Straight

Measurement System: Wire

Flute Type: Wide Land Parabolic

ISO Material Group: P, N, M, K

Standards: ASME B94.11M-1993

Material: Cobalt

Drill Bit Point Angle: 135 Degrees

Helix Type: Fast Spiral

Flute Length: 1-3/16 in

Drill Bit Size: #12

Shank Diameter: 4.8 mm

Coolant Fed: Non-Coolant Through

Overall Length: 2-1/4 in

Number of Flutes: 2

Finish/Coating: TiCN
