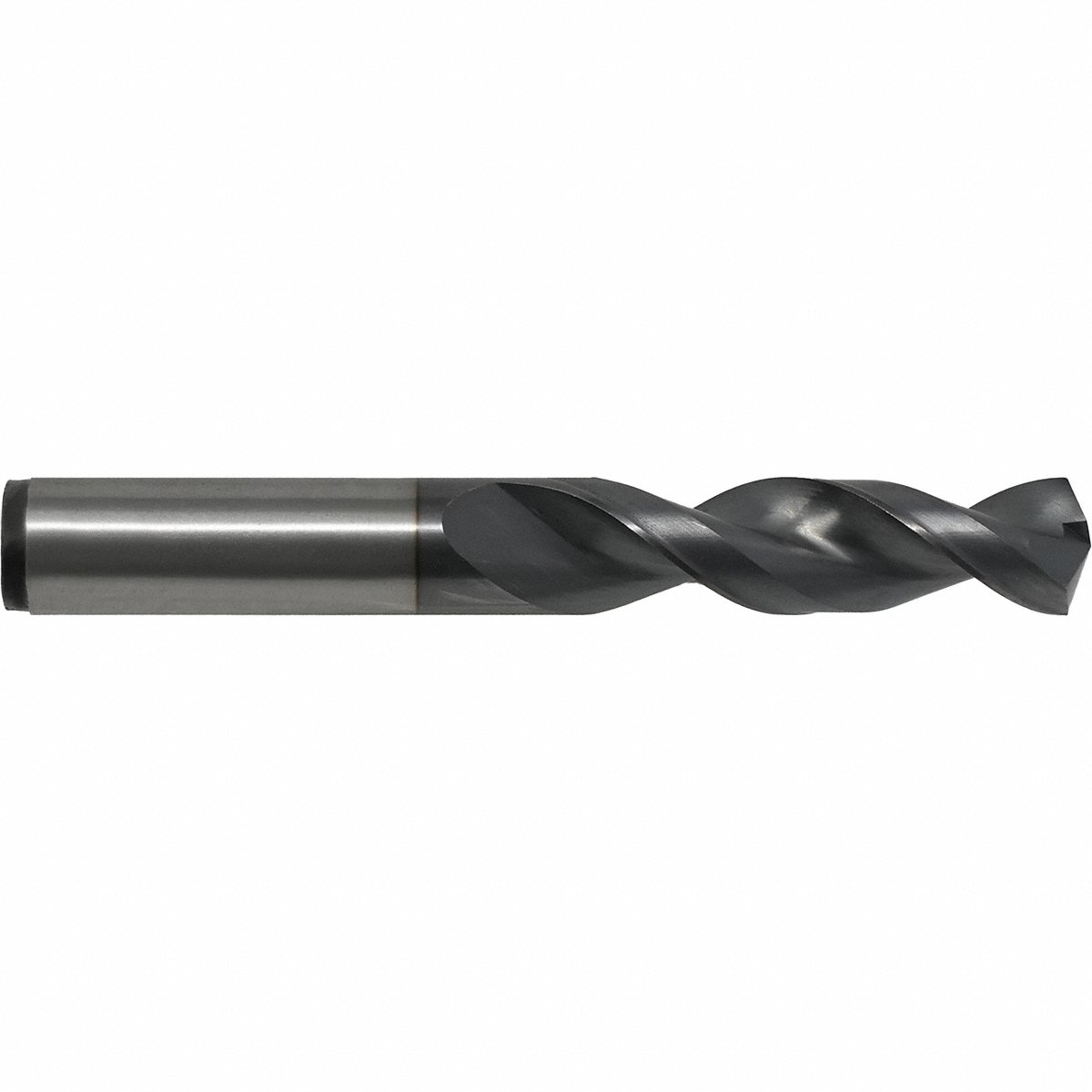

Cleveland Screw Machine Drill Bit, 13/64", Cobalt (C15259)

Number of Flutes: 2

Flute Length: 1-3/16 in

List Number: 2175-TC

Drill Bit Size: 13/64 in

Overall Length: 2-1/4 in

Measurement System: Fractional Inch

Drill Bit Point Angle: 135 Degrees

Coolant Fed: Non-Coolant Through

Material: Cobalt

ISO Material Group: P, N, M, K

Shank Diameter: 13/64 in

Drill Length Class: Screw-Machine Length

Finish/Coating: TiCN

Size Decimal Equivalent: 0.2031

Standards: ASME B94.11M-1993

Flute Type: Wide Land Parabolic

Helix Type: Fast Spiral

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Shank Type: Straight

Cutting Direction: Right Hand

Point Type: Split
