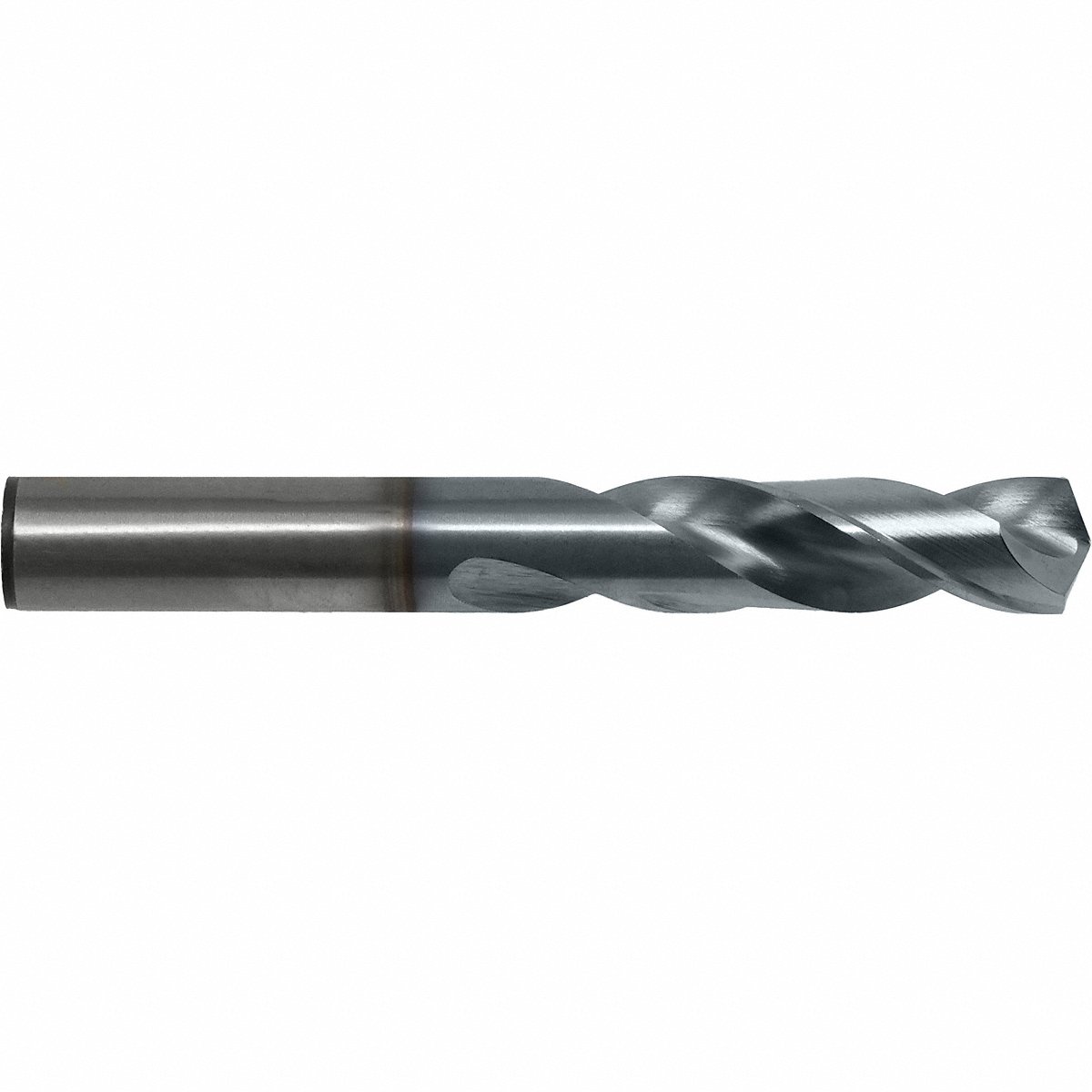

Cleveland Screw Machine Drill Bit, 15/64", Cobalt (C14857)

Flute Length: 1-5/16 in

Size Decimal Equivalent: 0.2344

List Number: 2133-TC

Helix Type: Regular Spiral

Drill Bit Size: 15/64 in

Shank Type: Straight

Point Type: Split

Measurement System: Fractional Inch

Drill Length Class: Screw-Machine Length

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Shank Diameter: 15/64 in

ISO Material Group: H, S, P, N, M, K

Number of Flutes: 2

Overall Length: 2-7/16 in

Coolant Fed: Non-Coolant Through

Drill Bit Point Angle: 135 Degrees

Flute Type: Spiral

Finish/Coating: TiCN

Cutting Direction: Right Hand

Material: Cobalt

Standards: ASME B94.11M-1993, DIN 1897
