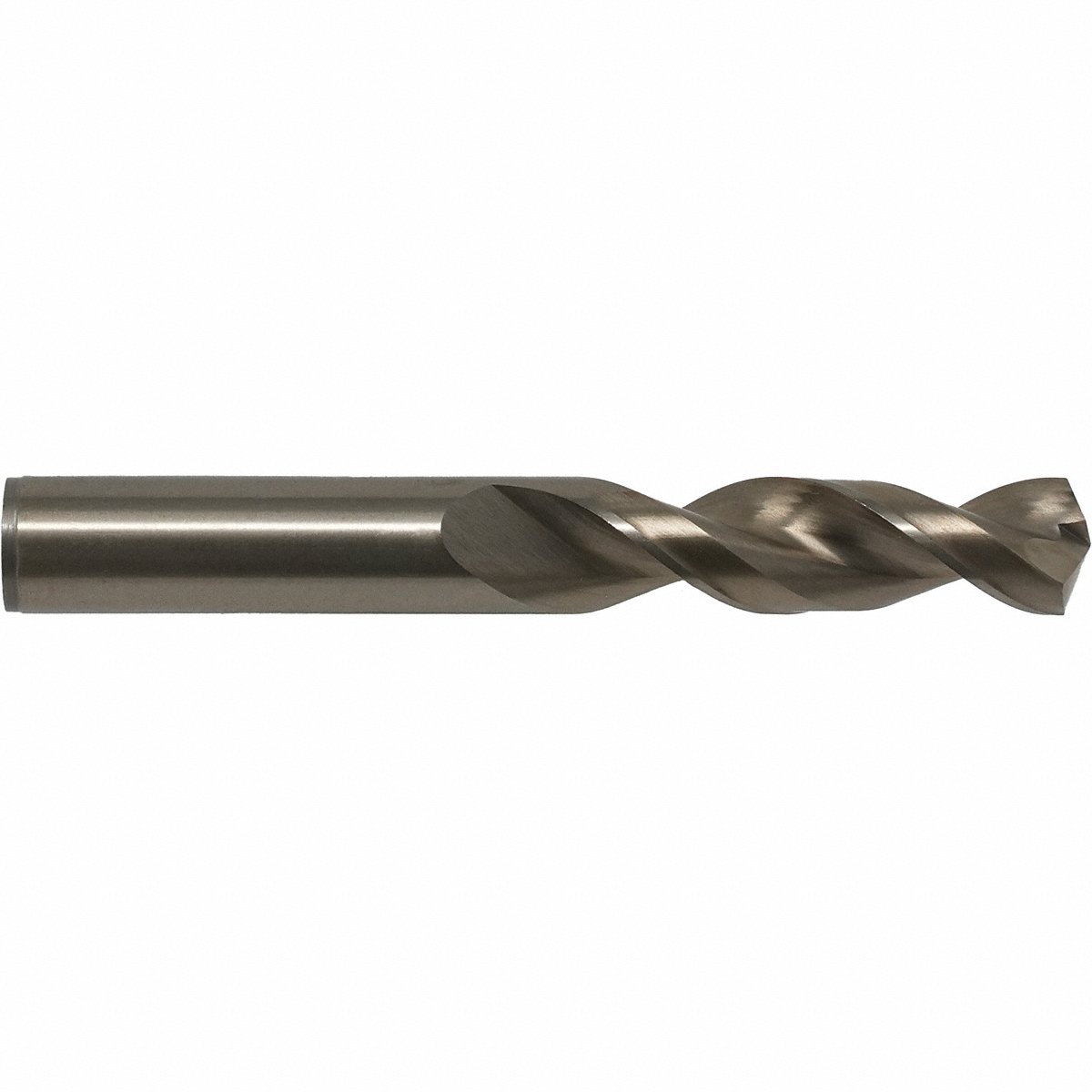

Cleveland Screw Machine Drill Bit #16 Cobalt (C14256)

Measurement System: Wire

Point Type: Split

Shank Diameter: 4.5 mm

Drill Bit Size: #16

Finish/Coating: Straw

Shank Type: Straight

Size Decimal Equivalent: 0.1770

Cutting Direction: Right Hand

Drill Length Class: Screw-Machine Length

Number of Flutes: 2

Overall Length: 2-3/16 in

Material: Cobalt

Flute Type: Wide Land Parabolic

List Number: 2175

ISO Material Group: H, S, P, N, M, K

Coolant Fed: Non-Coolant Through

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Helix Type: Fast Spiral

Drill Bit Point Angle: 135 Degrees

Flute Length: 1-1/8 in

Standards: ASME B94.11M
