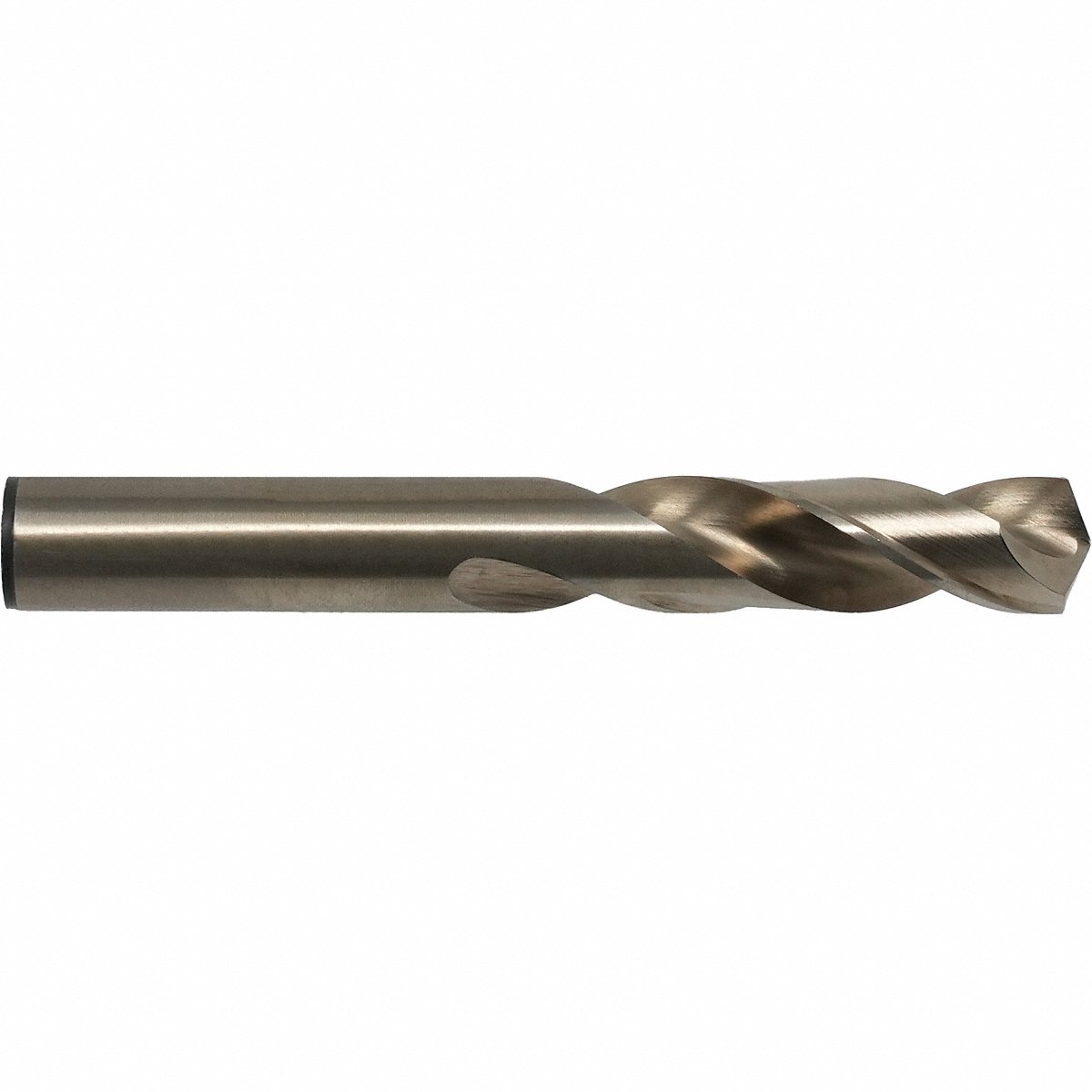

Cleveland Screw Machine Drill Bit, #57, Cobalt (C14505)

Drill Length Class: Screw-Machine Length

ISO Material Group: H, S, P, N, M, K

Drill Bit Point Angle: 135 Degrees

Standards: ASME B94.11M-1993, DIN 1897

Flute Length: 1/2 in

Point Type: Split

Cutting Direction: Right Hand

List Number: 2133

Size Decimal Equivalent: 0.0430

Coolant Fed: Non-Coolant Through

Shank Diameter: 1.09 mm

Number of Flutes: 2

Finish/Coating: Straw

Flute Type: Spiral

Material Application: Brass, Titanium, Copper, Bronze, Hardened Steel, Cast Iron, Steel, Aluminum, Stainless Steel

Measurement System: Wire

Helix Type: Regular Spiral

Overall Length: 1-3/8 in

Drill Bit Size: #57

Material: Cobalt

Shank Type: Straight
