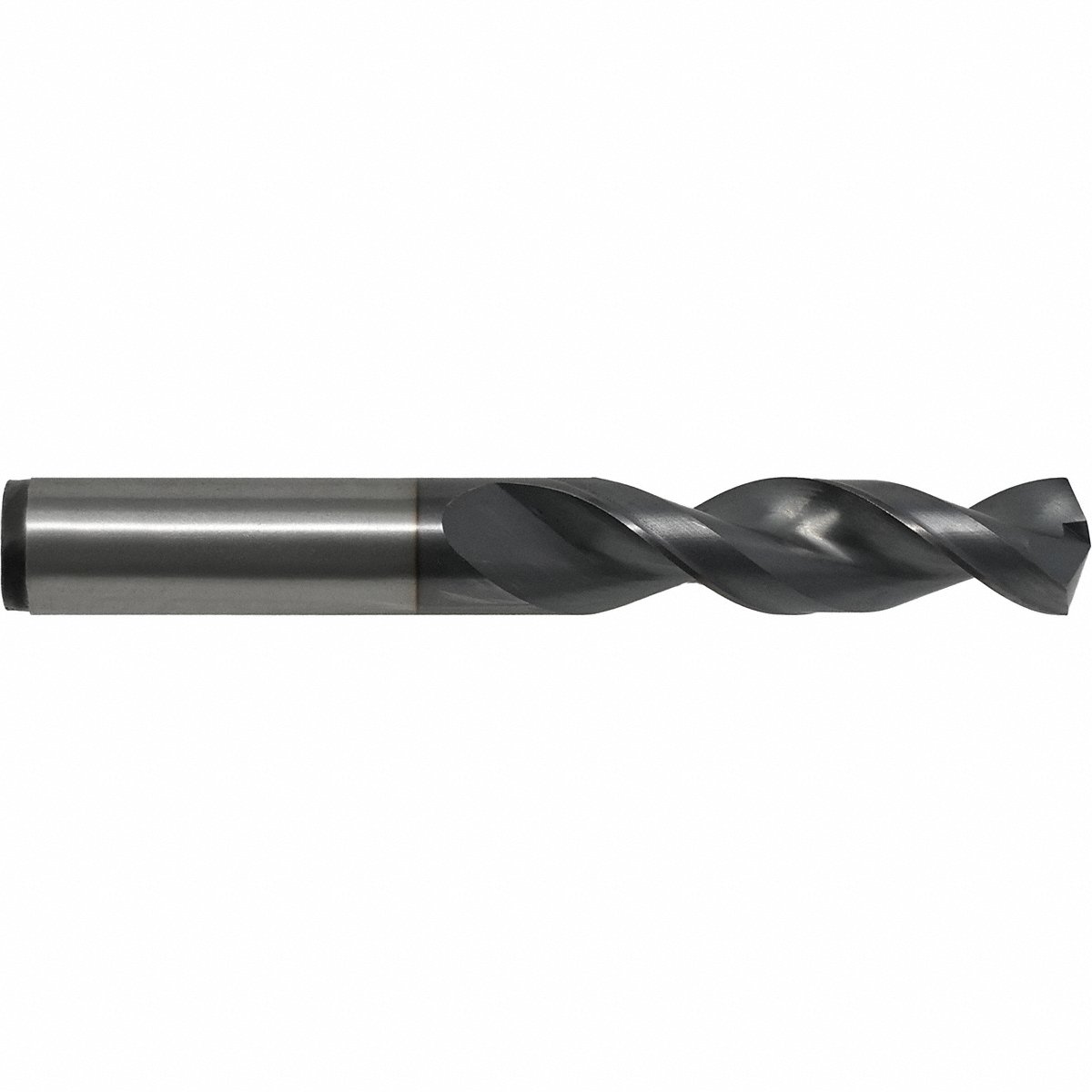

Cleveland Screw Machine Drill Bit, #7, Cobalt, Pack of 10 (C15297)

Flute Type: Wide Land Parabolic

Point Type: Split

Drill Length Class: Screw-Machine Length

Size Decimal Equivalent: 0.2010

Shank Diameter: 5.11 mm

Drill Bit Point Angle: 135 Degrees

ISO Material Group: P, N, M, K

Shank Type: Straight

Measurement System: Wire

Helix Type: Fast Spiral

List Number: 2175-TC

Finish/Coating: TiCN

Coolant Fed: Non-Coolant Through

Cutting Direction: Right Hand

Drill Bit Size: #7

Flute Length: 1-3/16 in

Overall Length: 2-1/4 in

Number of Flutes: 2

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel

Standards: ASME B94.11M-1993

Material: Cobalt
