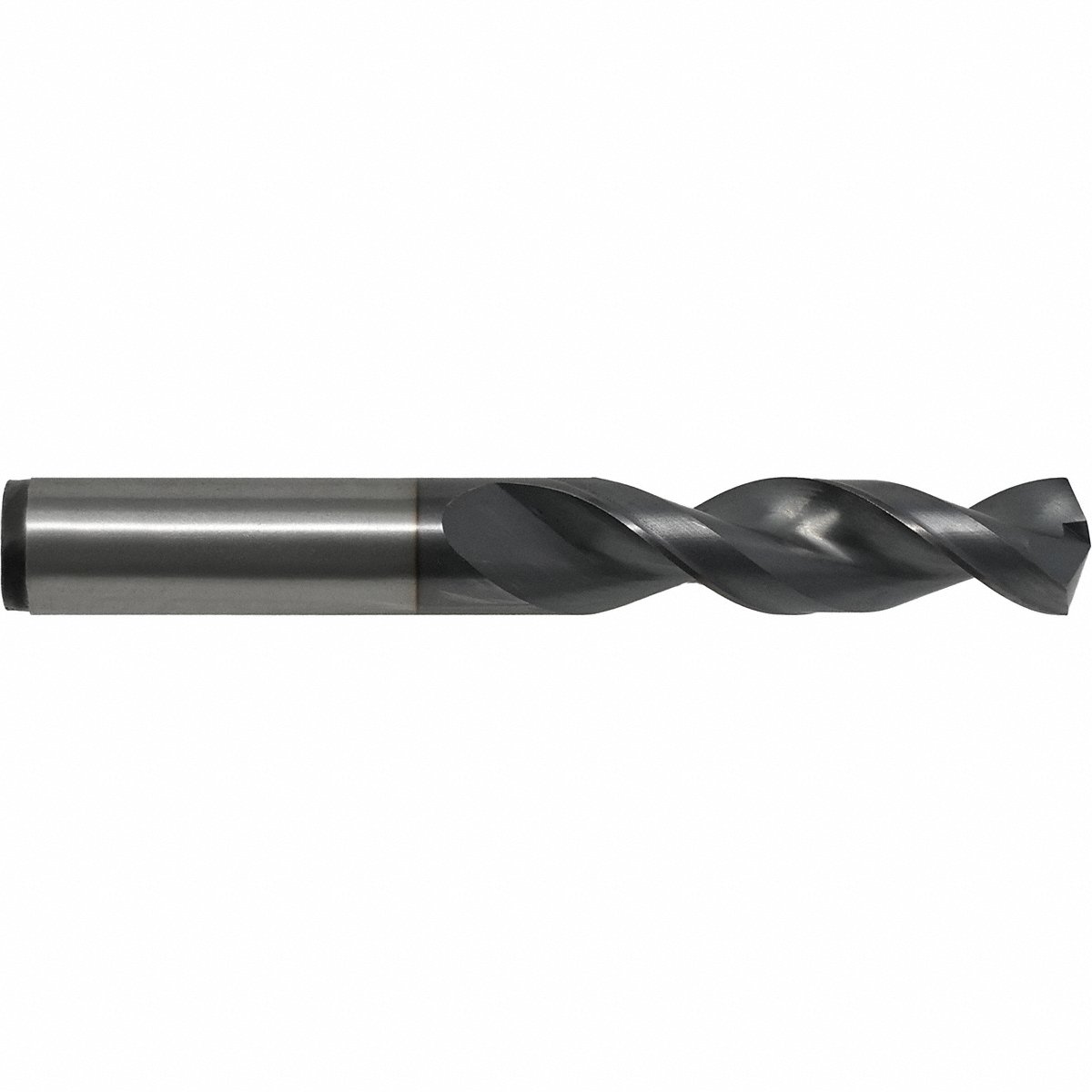

Cleveland Screw Machine Drill Bit, #9, Cobalt, Pack of 10 (C15299)

Coolant Fed: Non-Coolant Through

Number of Flutes: 2

List Number: 2175-TC

Shank Type: Straight

Material: Cobalt

Measurement System: Wire

Helix Type: Fast Spiral

Standards: ASME B94.11M-1993

Cutting Direction: Right Hand

Drill Length Class: Screw-Machine Length

Point Type: Split

Size Decimal Equivalent: 0.1960

Drill Bit Size: #9

Shank Diameter: 4.98 mm

Finish/Coating: TiCN

Flute Length: 1-3/16 in

Drill Bit Point Angle: 135 Degrees

Flute Type: Wide Land Parabolic

Overall Length: 2-1/4 in

ISO Material Group: P, N, M, K

Material Application: Brass, Copper, Steel, Bronze, Aluminum, Cast Iron, Stainless Steel
