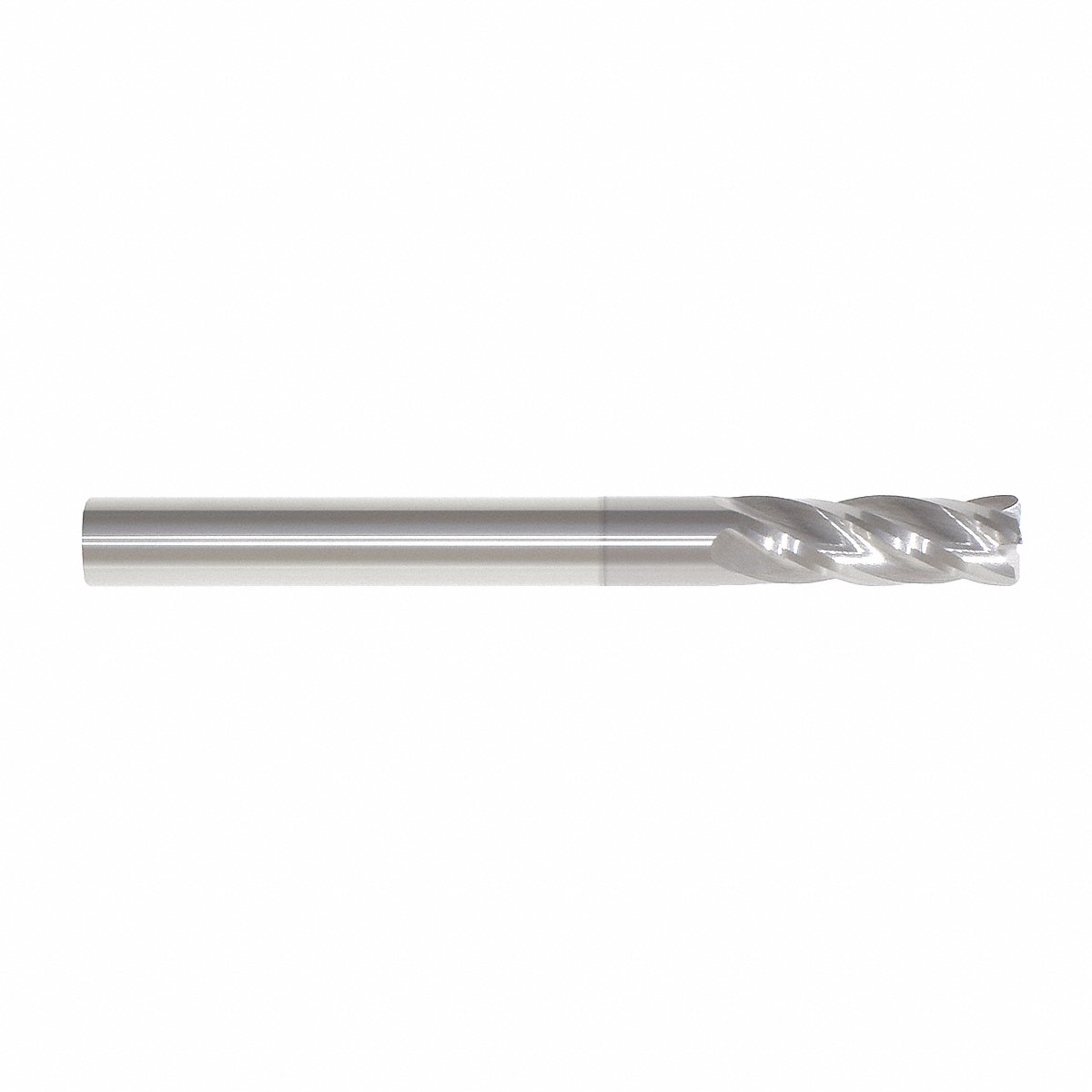

Corner Radius End Mill 1/4 Carb 0.0300 rad (206-602571)

End Mill Application: Roughing/Finishing

Milling Diameter: 1/4 in, 0.25 in

Shank Dia.: 1/4 in

Corner Radius: 0.03 in

Measurement System: Inch

Shank Type - Machining: Straight

ISO Material Group: H, P, N, K

Material - Machining: Carbide

End Mill Cutting Type: Center Cutting

Finish - Machining: TiCN

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

Flute Spacing: Fixed

End Mill Style: Corner-Radius

List Number: 206

Overall Length: 2-1/2 in

Single End/Double End: Single

Flute Type: Spiral

Helix Angle: 30 Degrees

Cutting Direction: Right Hand

Length of Cut: 0.75 in, 3/4 in

Number of Flutes: 4
