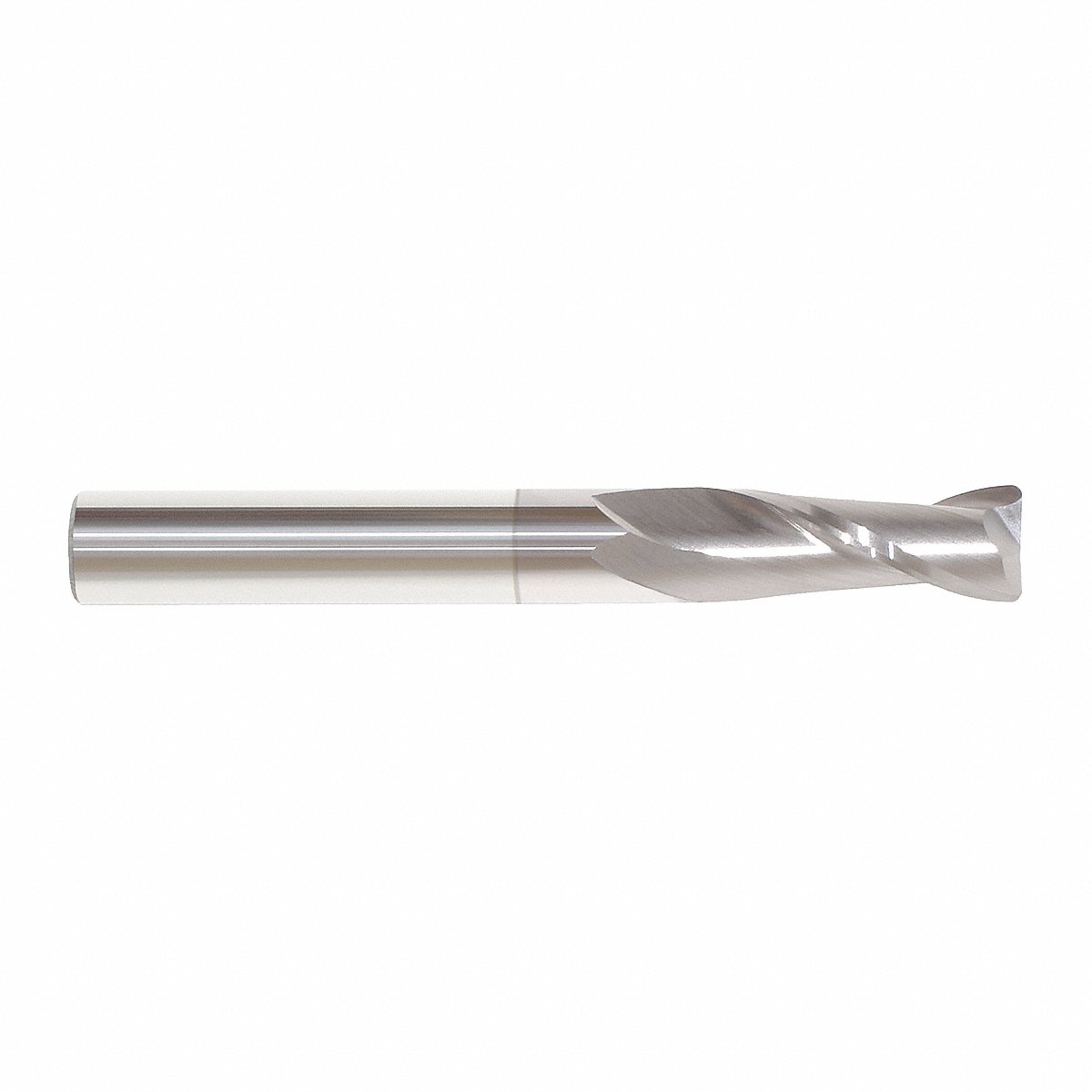

Corner Radius End Mill 1 Carb 0.0900 rad (204-603488)

End Mill Style: Corner-Radius

Material - Machining: Carbide

Milling Diameter: 1 in

Flute Spacing: Fixed

List Number: 204

Number of Flutes: 2

Corner Radius: 0.09 in

Overall Length: 4 in

Finish - Machining: TiCN

Shank Type - Machining: Straight

ISO Material Group: H, P, N, K

Shank Dia.: 1 in

Flute Type: Spiral

Helix Angle: 30 Degrees

End Mill Cutting Type: Center Cutting

Length of Cut: 1-1/2 in, 1.5 in

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

Measurement System: Inch

Cutting Direction: Right Hand

Single End/Double End: Single

End Mill Application: Roughing/Finishing
