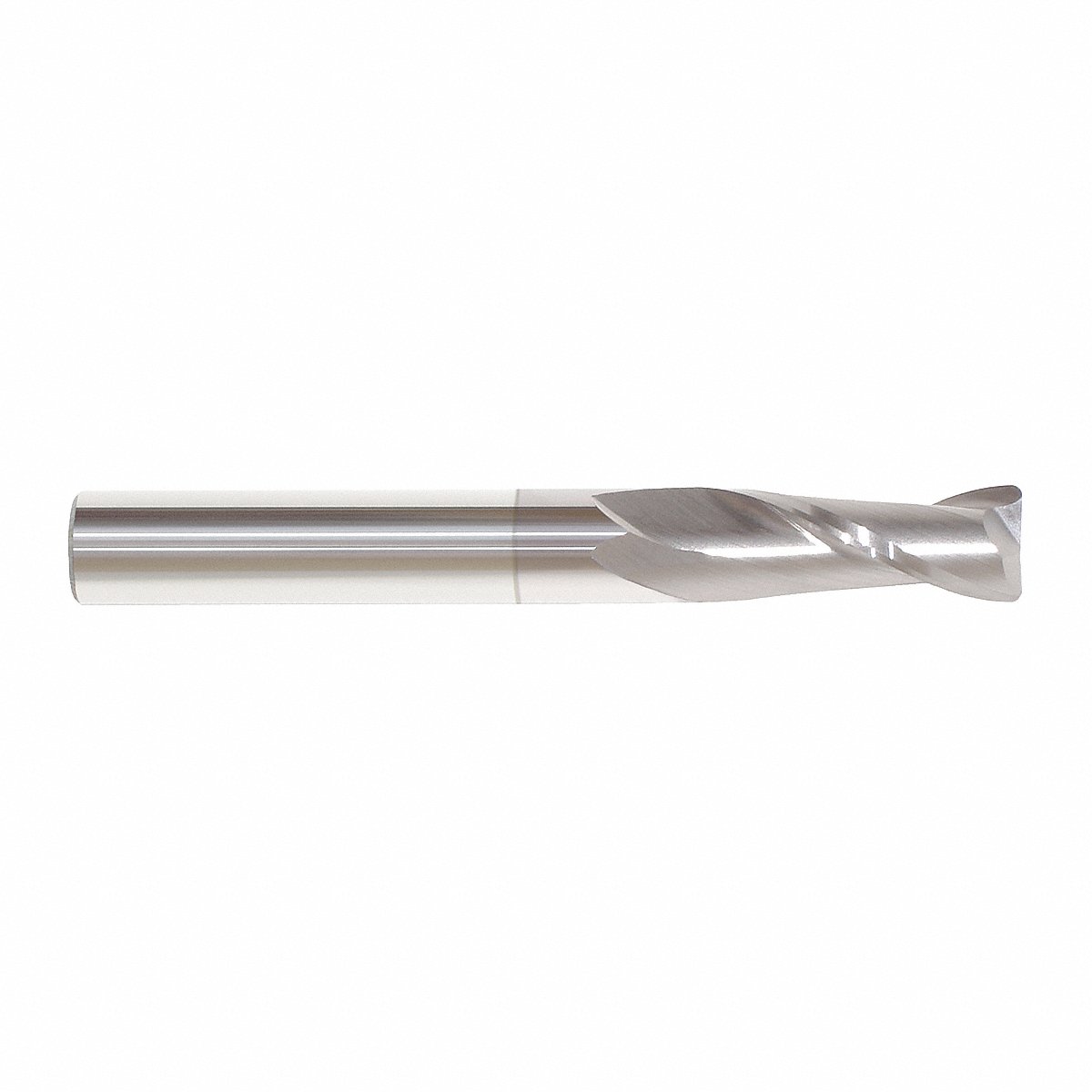

Corner Radius End Mill 3/16 Carb 0.0100 rad (204-602426)

End Mill Cutting Type: Center Cutting

Flute Spacing: Fixed

Helix Angle: 30 Degrees

Single End/Double End: Single

End Mill Style: Corner-Radius

Material - Machining: Carbide

Finish - Machining: TiCN

Measurement System: Inch

Corner Radius: 0.01 in

Shank Dia.: 3/16 in

Shank Type - Machining: Straight

Cutting Direction: Right Hand

List Number: 204

Flute Type: Spiral

Length of Cut: 5/8 in, 0.625 in

Overall Length: 2 in

ISO Material Group: H, P, N, K

Number of Flutes: 2

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

End Mill Application: Roughing/Finishing

Milling Diameter: 0.1875 in, 3/16 in
