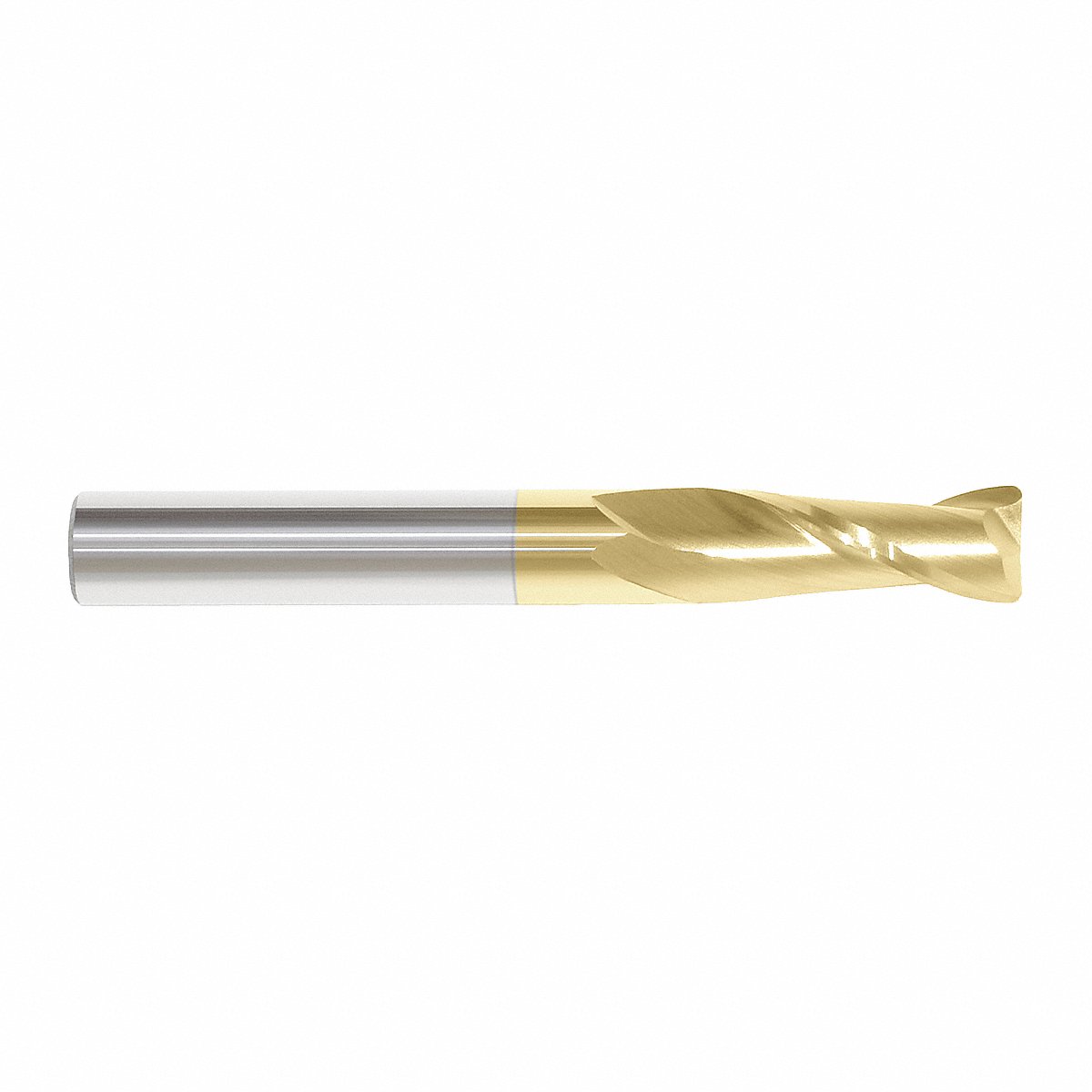

Corner Radius End Mill 7/16 Carb 0.0450 rad (204-602987)

Helix Angle: 30 Degrees

List Number: 204

Overall Length: 2-3/4 in

End Mill Cutting Type: Center Cutting

Measurement System: Inch

Number of Flutes: 2

Finish - Machining: TiN

Material - Machining: Carbide

End Mill Style: Corner-Radius

Shank Dia.: 7/16 in

End Mill Application: Roughing/Finishing

Single End/Double End: Single

Flute Type: Spiral

Length of Cut: 1 in

ISO Material Group: H, P, N, K

Corner Radius: 0.045 in

Milling Diameter: 0.4375 in, 7/16 in

Cutting Direction: Right Hand

Material Application: Tool and Die Steel, Brass, Copper, Steel, Bronze, Hardened Steel, Aluminum, Cast Iron

Shank Type - Machining: Straight

Flute Spacing: Fixed
