Shut Off Pressure - Maximum: 125 psi
Horsepower: 1 hp
Discharge: 1 in FNPT
Inlet: 1-1/4 in FNPT
Manufacturer Warranty Length: 1 yr
Series: Dayton
NSF Certifications for Food and Drinking Water: NSF 372
Case Pressure - Maximum: 150 psi
Best Efficiency Flow: 10.6 gpm
Frequency: 60 Hz
Inlet Pressure - Maximum: 150 psi
Media Temperature - Maximum: 140 Degrees F
Phase: Single

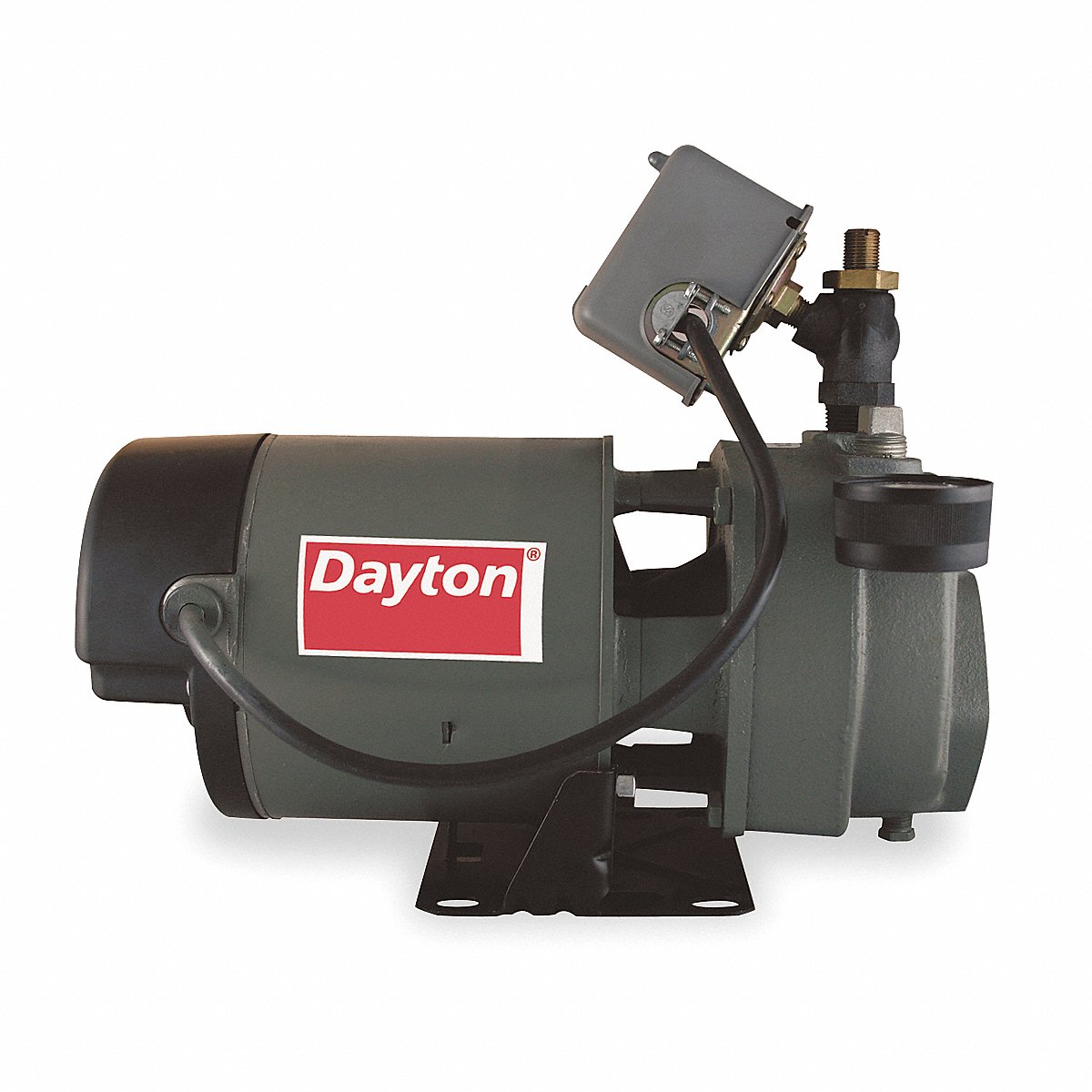

Product Type: Convertible Well Jet Pump
Rated Voltage: 115/230V AC
Flow Rate - Maximum: 19.5 gpm
Body Material: Cast Iron
Ejector: Not Included
Full Load Current: 18.0/9.0 A
Suction Lift - Maximum: 50 ft
Motor Enclosure Design: Open Drip Proof
Best Efficiency Head: 135 ft
Pressure Switch Setting - Minimum: 30 psi
Pressure Switch Setting - Maximum: 50 psi
