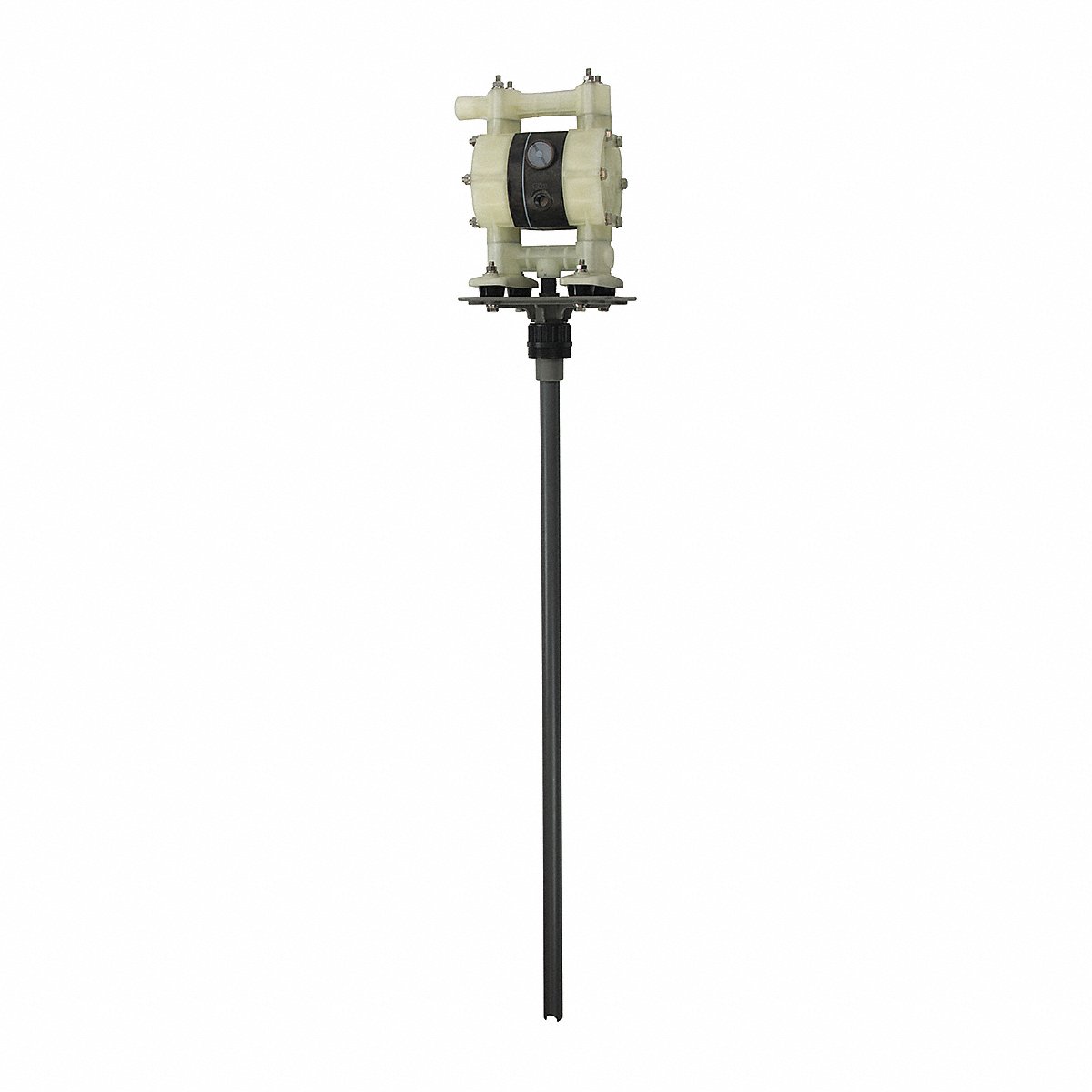

Dayton Air Operated Drum Pump 12.5 gpm 1/4" FNPT (53JU96)

Suction Tube Material: PVC

Maximum Fluid Temperature: 180 Degrees F

Duty Cycle: Continuous

Static Protection: Not Groundable

Maximum Outlet Pressure: 100 psi

Chemical Compatibility: Methyl Ethyl Ketone, Nitric Acid 10% Solution, Ethanol, Sodium Hydroxide 50%, Diesel Fuel, Sodium Bisulfate, Ethylene Glycol, Methanol, Sodium Bisulfite, Isopropanol, Potassium Hydroxide 50%, Formaldehyde 40%, Sodium Bicarbonate 10%, Hydrochloric Acid 20%, Sodium Hydroxide 80%, Anhydrous Ammonia, Acetic Acid 20%, Citric Acid 50%, Calcium Chloride, Sulfuric Acid 10% to 75%, Salt Water, Formaldehyde, Phosphoric Acid 40% Solution, Formic Acid, Cyclohexane, Antifreeze Coolant, Sulfuric Acid up to 10%, Fresh Water, Acetone, Ethyl Acetate, Nitric Acid 20% Solution, Sodium Hydroxide 20%, Motor Oil, Hydrochloric Acid 37%

Includes Follower Plate: No Follower Plate Included

Maximum Flow Rate: 12.5 gpm

Pressure Ratio: 1: 1

Variable Speed: Yes

Maximum Air Pressure: 100 psi

Wetted Material: Santoprene

Bung Adapter: 2 in FNPT

Housing Material: Polypropylene

Maximum Viscosity: 15,000 cps

Hazardous Location Class: Not Rated

For Container Size: 55 gal

Includes: Grounding Strap, Hose, Dip Tube, Ball Valve

Air Consumption: 12 cfm

Pump Technology: Diaphragm

Features: Intrinsically Safe

Mounting Bracket Included: Drum Mounting Bracket

Suction Tube Length: 40-1/2 in

Pump Package Type: Pump w/ Hose

For Container Type: Drum

Maximum Head: 231 ft

Maximum Head Pressure: 100 psi

Meter Type Included: No Meter Included
